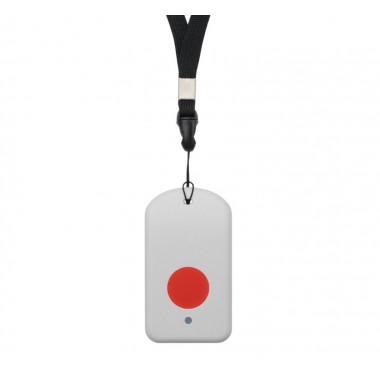

LoRaWAN GPS Tracker with 9-axis accelerometer-LGT92 - Li-on Battery

LoRaWAN GPS Tracker with 9-axis accelerometer-LGT92 - Li-on Battery

Rastreador GPS LoRaWAN Open Source de muy bajo consumo con acelerómetro de 9 ejes para detección de movimiento y posición. Se alimenta con una batería de Li-Ion de 1000mAh.

COD: DRALGT92LI

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 128249.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

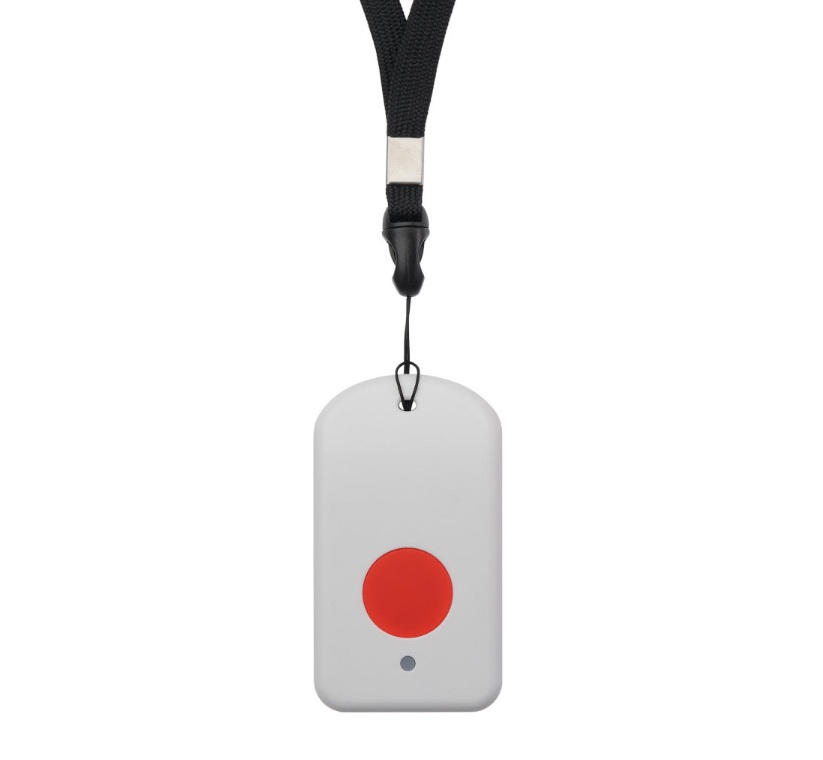

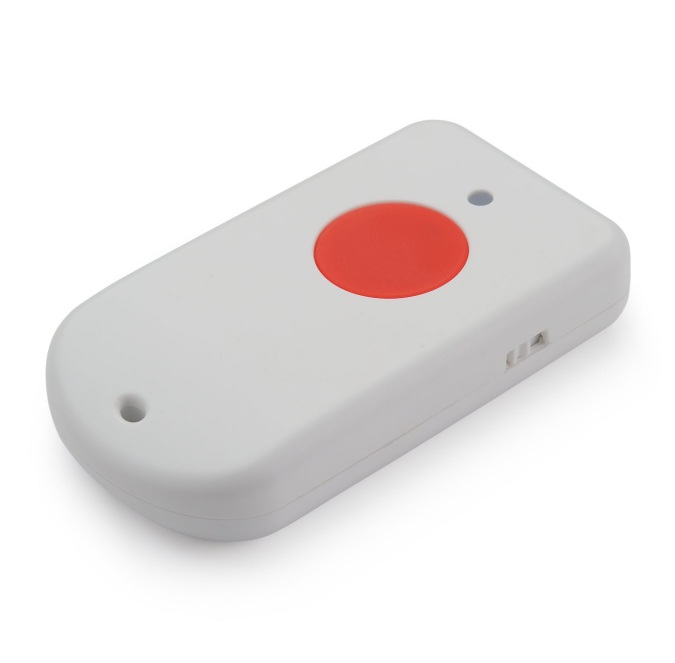

The Dragino LoRaWAN GPS Tracker LGT-92 is an open source GPS tracker base on Ultra Low Power STM32L072 MCU and SX1276/1278 LoRa Module.

LGT-92 includes a low power GPS module L70 and 9-axis accelerometer for motion and attitude detection. The power for both of the GPS module and accelerometer can be controlled by MCU to achieve the best energy profile for different applications.

The LoRa wireless technology used in LGT-92 allows the user to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.It targets professional tracking service.

LGT-92 series products include two major variants:

  • LGT-92-LI: is powered by 1000mA rechargeable Li-on battery and charge circuit, which target for real time tracking with short tracking uplink.
  • LGT-92-AA: Disable the charge circuit to get the lowest power consumption and power directly by AA batteries. This is designed for asset tracking where only need to uplink a few times every day.

LGT-92 is an open source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found in ST site for rapid development.



Features:

  • LoRaWAN 1.0.3 compliant.
  • Regular/ Real-time GPS tracking.
  • Built-in 9 axis accelerometer.
  • Motion sensing capability.
  • Power Monitoring.
  • Charging clip with USB port  (for LGT-92-LI).
  • 1000mA Li-on Battery power (for LGT-92-LI).
  • 2 x AA battery holder (for model LGT-92-AA).
  • Tri-color LED, Alarm button.
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915.
  • AT Commands to change parameters.



Applications:

  • Logistics and Supply Chain Management.
  • Smart Cities.
  • Smart Factory.



Specification:

System:

  • STM32L072CZT6
  • Flash:192KB
  • RAM:20KB
  • EEPROM:6KB

GPS,L70R:

  • Acquisition: 16mA
  • Tracking: 13mA
  • Cold Start: <35s
  • 8uA@Backup Mode
  • Warm Start: <30s
  • Accuracy: < 2.5m CEP
  • ReHot Start: <1s

Accelerometer:

  • MPU9250 9-axis
  • triple-axis MEMS gyroscope
  • triple-axis MEMS accelerometer
  • triple-axis MEMS magnetometer
  • 3.5mA operating current

Power Comsuption:

  • Sleeping Mode: 77uA  (for LGT-92-LI),  3uA (for LGT-92-AA)
  • Tracking: max: 38mA
  • LoRa Transmit: 24 ~ 150mA



Documents:
