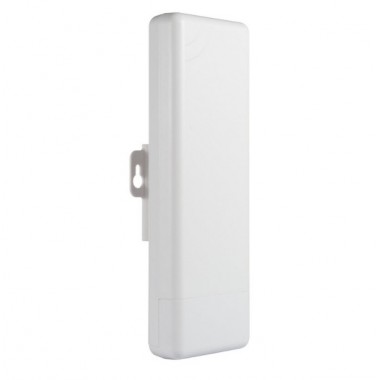

OLG01-N Single Channel LoRa IoT Gateway

OLG01-N Single Channel LoRa IoT Gateway

Gateway Lora para exterior de un canal con frecuencia central 915 Mhz. Posee WiFi y 2 puertos Ethernet. Requiere fuente de alimentación de 9 a 15 VDC 0.5A (no incluida). No incluye el módulo EC25-AU (4G). A diferencia del OLG01, el OLG01N permite usar Linux para controlar directamente el SX1276/78 facilitando la programación. Soporta MQTT y TCP/IP.

COD: DRAOLG01N

Peso: 0.300 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 201005.99

Cantidad:

El producto no está disponible para la venta en este momento

Características

OLG01-N is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, Or 3G/4G cellular via optional LTE module. The
LoRa wireless allows users to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity.

OLG01-N has rich internet connection method  such as WiFi interface, Ethernet port and USB host port. These Interfaces provide flexible methods for users to connect their sensor networks to Internet.

OLG01-N can support Limited LoRaWAN protocol in single frequency and customized LoRa transmit protocol. Different from OLG01, OLG01-N use the Linux to directly control the sx1276/sx1278 LoRa module which increase the communication efficiency and simplify the software design.

OLG01-N can be used to provide a low cost IoT wireless solution to support 50~300 sensor nodes.

Except LoRaWAN mode, LG01-N can support mutiply working mode  such as: MQTT mode, TCP/IP Client  mode to fit different requirement for IoT connection.

LG01-N base on sx1276 solution which provide a low cost for your IoT network connection. Compare to the cost with normal SX1301 LoRaWAN solution. the LG01-N is only of its 1/4 or less cost. This make the OLG01-N very suitable to set up small scale LoRa network.



LG01-N



Features:

  • Open Source OpenWrt system
  • Low power consumption
  • Firmware upgrade via Web
  • Software upgradable via network
  • Flexible protocol to connect to IoT servers
  • Auto-Provisioning
  • Built-in web server
  • Managed by Web GUI, SSH via LAN or WiFi
  • Internet connection via LAN, WiFi, Or 3G/4G via optional LTE module
  • Failsafe design provides robustly system
  • 1 x SX1276/SX1278 LoRa module
  • Limited support in LoRaWAN/ Support Private LoRa protocol
  • Support upto 300 nodes
  • LoRa band available at 433/868/915/920 Mhz
  • Max range in LoRa: 5~10 km. Density Area:>500m



Applications:

  • Wireless Alarm and Security Systems
  • Home and Building Automation
  • Automated Meter Reading
  • Industrial Monitoring and Control
  • Long range Irrigation Systems
  • GPS tracker,etc
  • LoRaWAN Reapeter



Linux Side:

  • Processor: 400MHz, 24K MIPS
  • Flash: 16MB ; RAM: 64MB

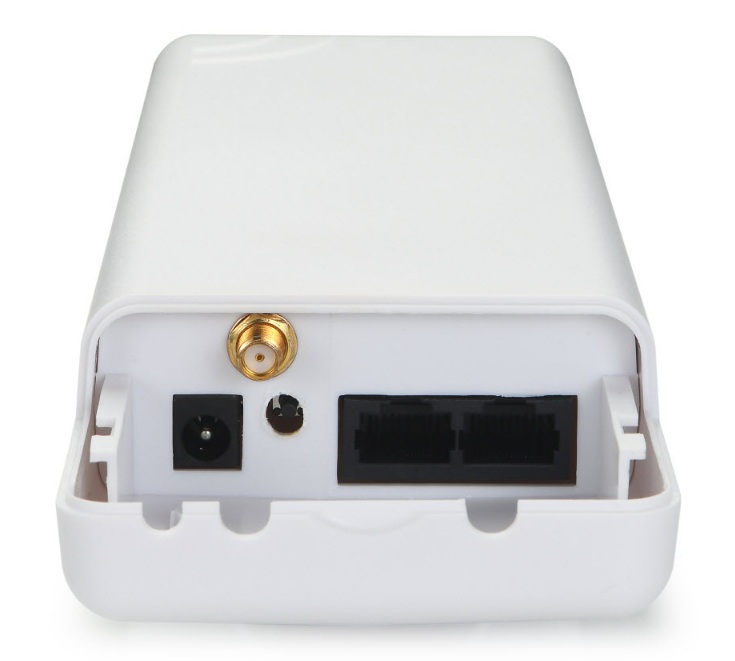

Interfaces:

  • 10M/100M RJ45 Ports x 2
  • WiFi : 802.11 b/g/n
  • LoRa Wireless
  • Power Input: 12V DC
  • 1 x LoRa Interface



Documents:
