Sensor de Presión Barométrica BMP085

BMP085 Breakout

Breakout de sensor de presión barométrica de alta precisión.

COD: DFBMP085

Peso: 0.005 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 23500.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



Introduction

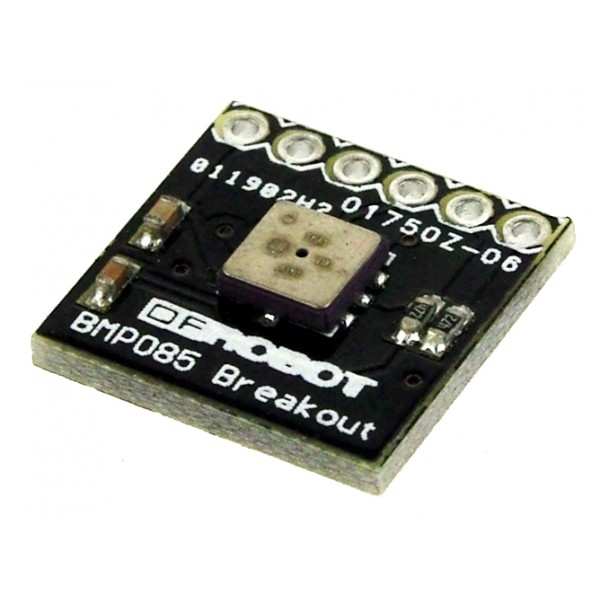

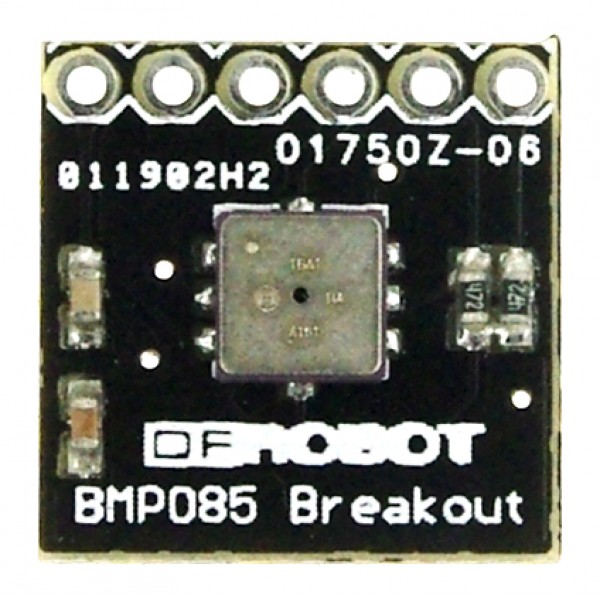

This is a simple breakout board for the BMP085 high-precision, low-power barometric pressure sensor from DFRobot. The BMP085 offers a measuring range of 300 to 1100 hPa with an absolute accuracy of down to 0.03 hPa. It's based on piezo-resistive technology for EMC robustness, high accuracy and linearity as well as long term stability. This sensor supports a voltage supply between 1.8 and 3.6VDC. It is designed to be connected directly to a micro-controller via the I2C bus

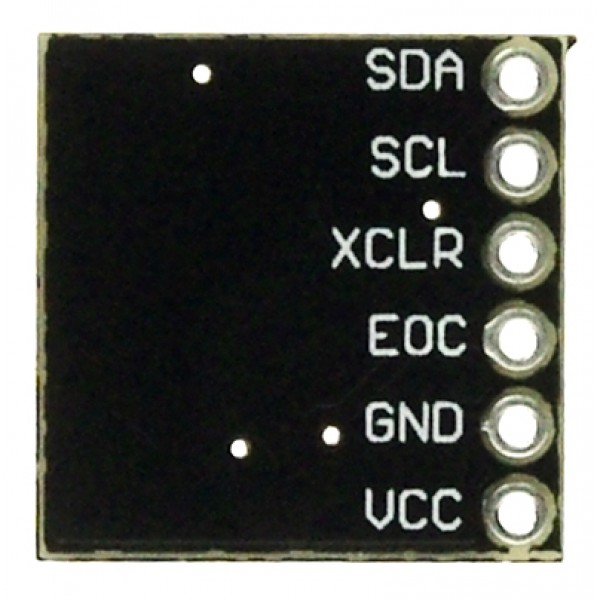

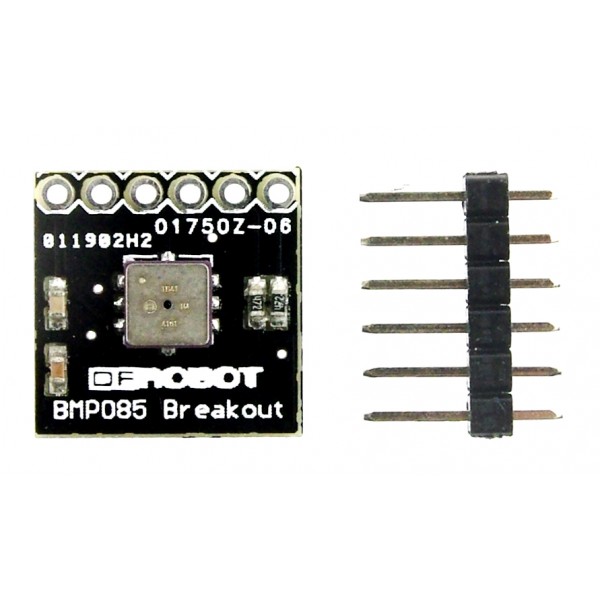

This breadboard-friendly board breaks out all pins of the BMP085 to a 6-pin 0.1" pitch header. The analog and digital supplies (VDDD and VDDA) of the BMP085 are tied together and broken out to a single pin. We've also put two 4.7k pull-up resistors on the I2C lines.



Specifications

  • Digital two wire (I2C) interface
  • Wide barometric pressure range
  • Flexible supply voltage range
  • Ultra-low power consumption
  • Low noise measurement
  • Fully calibrated
  • Temperature measurement included
  • Ultra-flat, small footprint
  • Dimensions:16 x 16 mm
