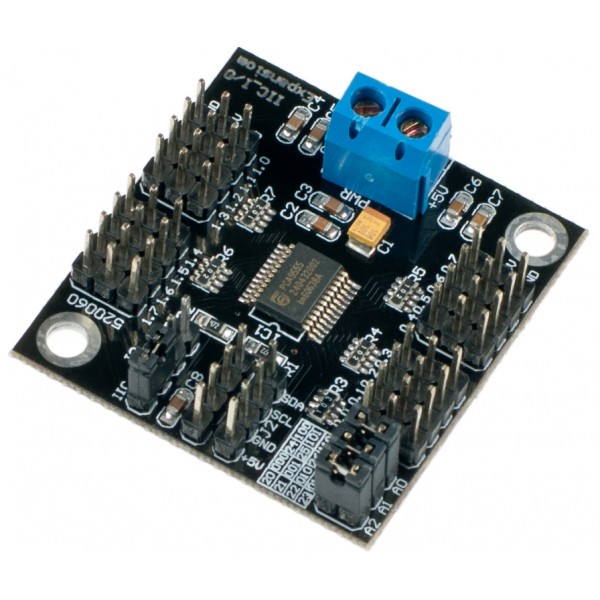

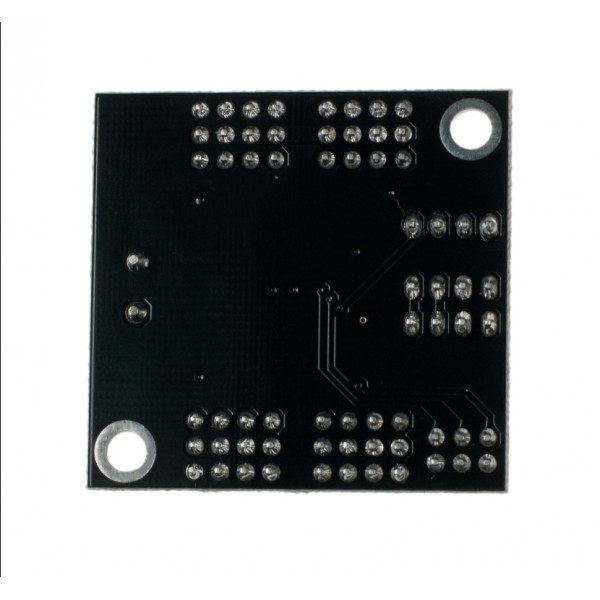

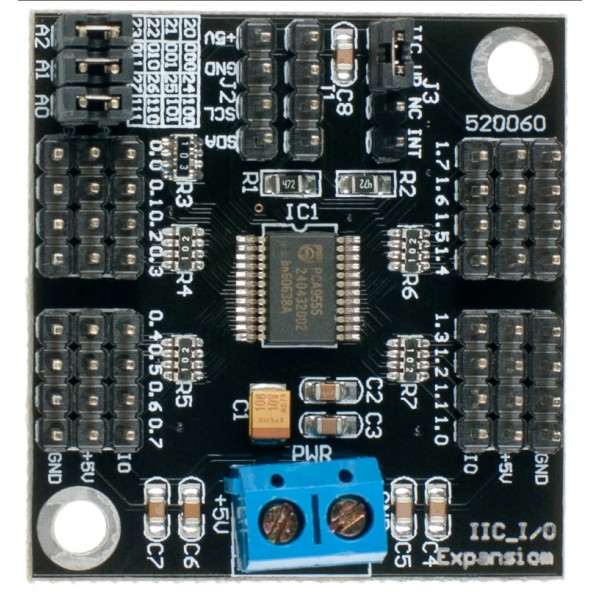

IIC TO GPIO module
Módulo de expansión I/O con comunicación I2C
COD: DFR0013
Peso: 0.012 Kg
Disponibilidad: Sin Stock
ARS 23134.00
El producto no está disponible para la venta en este momento
Características
Introduction
When Arduino is used for robots or interactive media, digital IO port is always found not enough? IIC now turn I / O modules to help you solve the problem, Arduino only two data lines (SCL-Analog PIN5, SDA-Analog PIN4) and IIC can transfer I / O module communication, to convert the 16 digital IO ports, read-write. 8 simultaneous parallel modules, each module can be set to address.
Specifications
- Module power supply: +5 V
- 16 Digital IO port comes with internal pull-up
- Can be set to eight addresses (address range of 0x20 ~ 0x27)
- 8 modules simultaneously in parallel (IIC bus need to pull together)
- Module Size: 42x40mm
Shipping List
- IIC To GPIO Module(1 unit)
Schematic (44 Kb)
Arduino Sample Code (1 Kb)
