SO8 MSOP8 SOIC8 TSSOP8 SOP8 turn DIP8 IC Adapter PCB
![SO8 MSOP8 SOIC8 TSSOP8 SOP8 turn DIP8 IC Adapter PCB](/library/timthumb/timthumb.php?src=/uploadsproductos/2-x-sop8-s08-soic8-tssop8-msop8-to-dip8-adapter-converter-board-smd-breakout-ic-362262594021-2.jpg&w=380&h=380&zc=2)

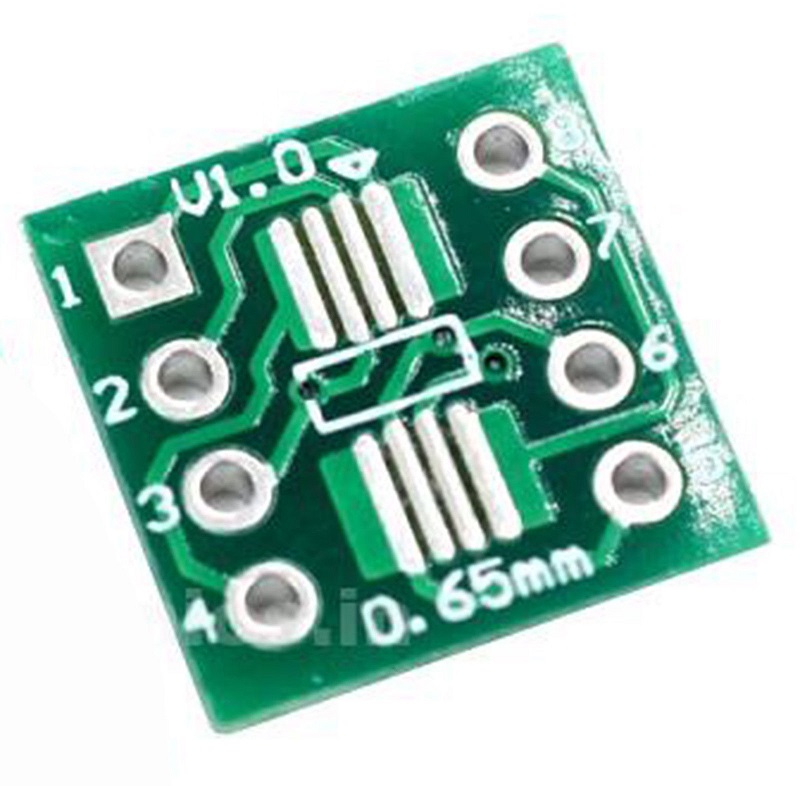

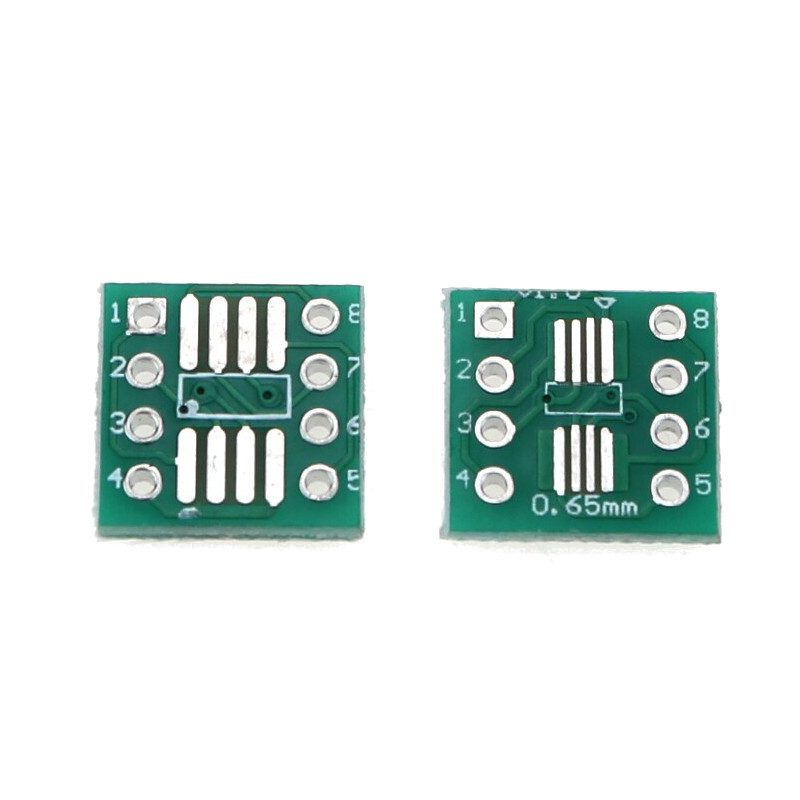

Pequeña placa que permite adaptar diferentes tipos de encapsulados SMD a tipo DIP8.
COD: HTHS1327-U
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 349.00
El producto no está disponible para la venta en este momento
Características
Description:

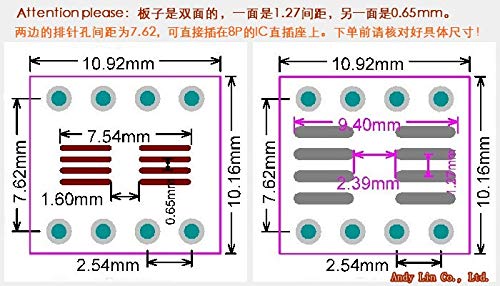

These PCB breakout board has two sides one side for pin pitch size 0.65mm, the other side for pin pitch size 1.27mm which breakout to a standard 2.54mm DIP.
These tiny boards are useful for modding and upgrading SMD components to a DIP footprint.
You can also use these adapters for prototyping by making SMD packages compatible with solderless breadboards.
A side for pin pitch size 1.27mm, it can be used for most of the SO, SOP, SOIC to 2.54mm DIP.
B side for pin pitch size 0.65mm, it can be used for most of the SSOP, TSSOP, MSOP to 2.54mm DIP.
Specifications:
- 2 x Double sided SOP to DIP.
- A side pin pitch :1.27mm.
- B side pin pitch : 0.65mm.
- Breakout to 2.54mm DIP.
