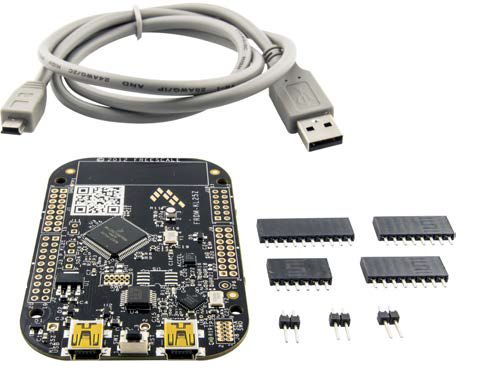

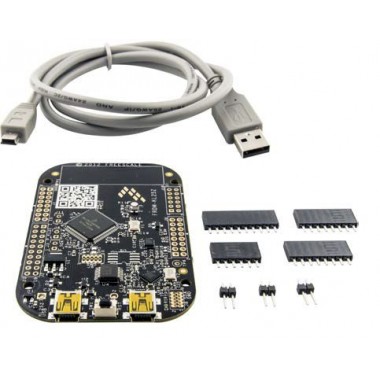

Kit base plataforma FRDM-KL25Z
Plataforma de desarrollo ARM Cortex-M0 de bajo costo basada en Kinetis Serie L
COD: N46W9880
Peso: 0.230 Kg
Disponibilidad: Sin Stock
ARS 44721.00
El producto no está disponible para la venta en este momento
Características

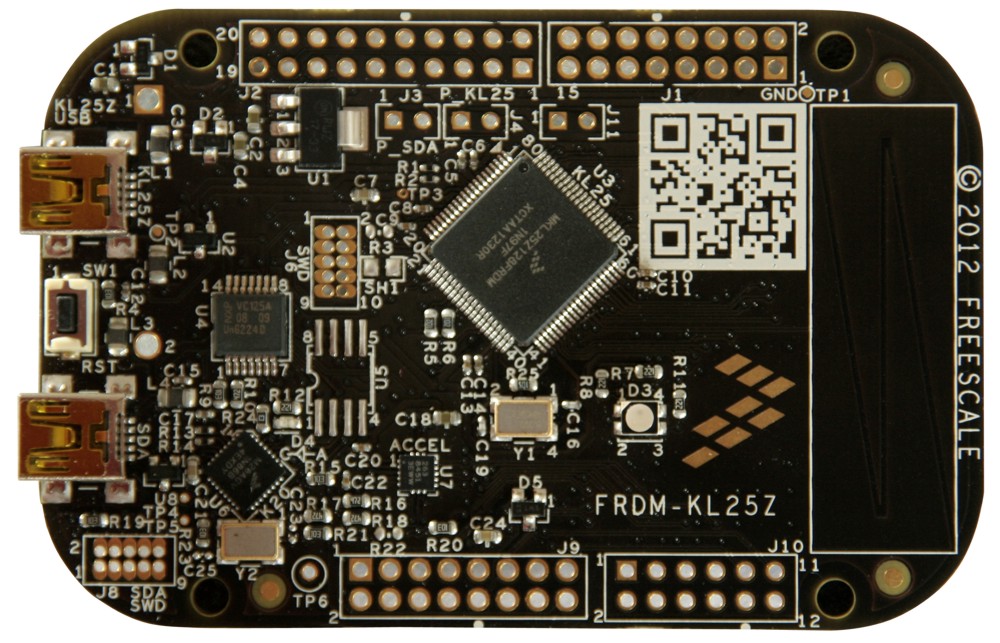

The FRDM-KL25Z is an ultra-low-cost development platform enabled by Kinetis L Series KL1x and KL2x MCUs families built on ARM® Cortex™-M0+ processor. Features include easy access to MCU I/O, battery-ready, low-power operation, a standard-based form factor with expansion board options and a built-in debug interface for flash programming and run-control. The FRDM-KL25Z is supported by a range of Freescale and third-party development software.
Customers can now utilize mbed.org at no charge, with full access to the online SDK, tools, reusable code — which means no downloads, installations or licenses — and an active community of developers.
Features

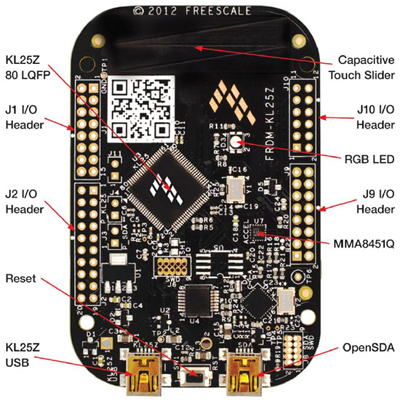

- MKL25Z128VLK4 MCU – 48 MHz, 128 KB flash, 16 KB SRAM, USB OTG (FS), 80LQFP
- Capacitive touch “slider,” MMA8451Q accelerometer, tri-color LED
- Easy access to MCU I/O
- Sophisticated OpenSDA debug interface
- Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps
- P&E Multilink interface provides run-control debugging and compatibility with IDE tools
- Open-source data logging application provides an example for customer, partner and enthusiast development on the OpenSDA circuit
- mbed enabled
Related Software and Tools
- MEDICALUSB: USB Stack
- PE_DRIVER_SUITE: Processor Expert Software, Microcontroller Driver Suite
- TSS: Xtrinsic Touch-Sensing Software
- CW-MCU10: CodeWarrior for MCUs (Eclipse IDE) - ColdFire, 56800/E DSC, Kinetis, Qorivva 56xx, RS08/S08, S12Z
Eval Basic Brochure (332 Kb)
FRDM-KL25Z User's Manual Rev 1.0 (2341 Kb)
