TXB0104 Breakout
Conversor de niveles de tensión bidireccional de 4 bits con detección automática de sentido
COD: SFBOB11771
Peso: 0.036 Kg
Disponibilidad: Sin Stock
ARS 11121.00
El producto no está disponible para la venta en este momento
Características

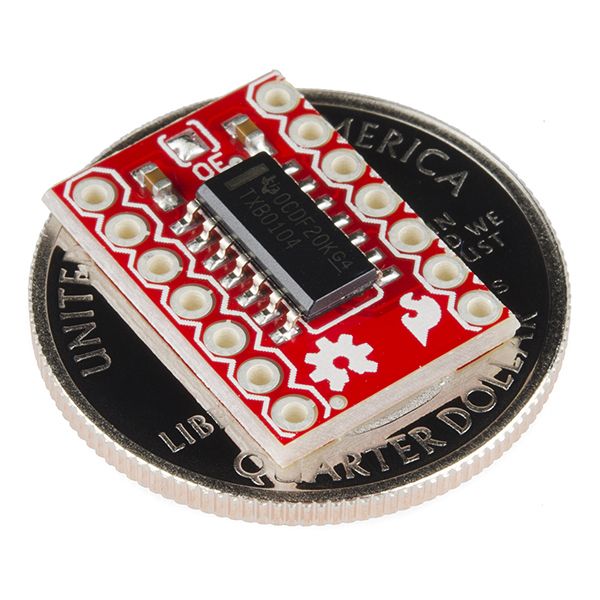

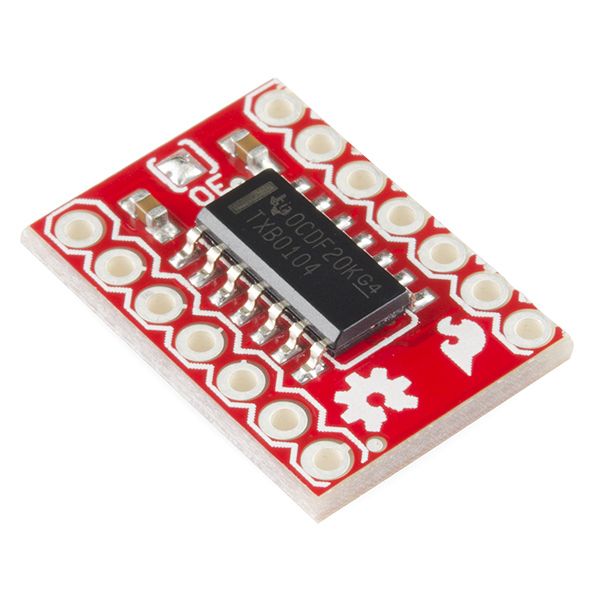

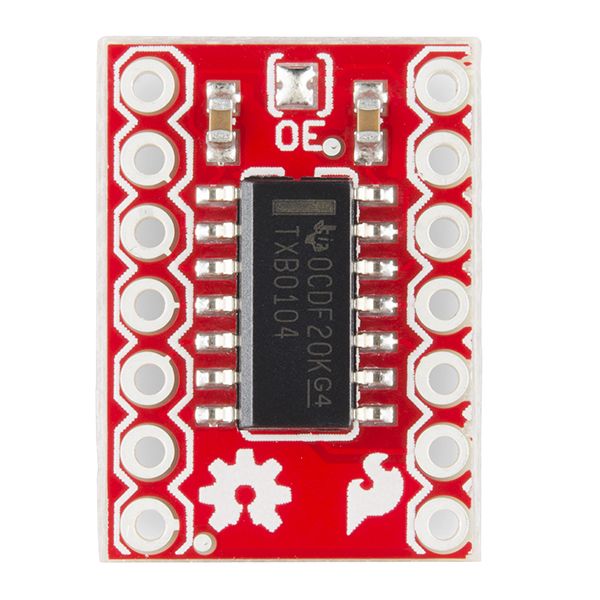

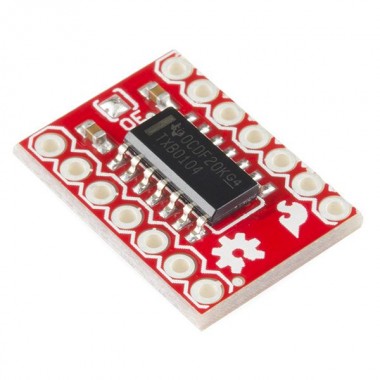

Description: This is a breakout board for the Texas Instruments TXB0104 module. The TXB0104 is a 4-bit bidirectional voltage-level translator with automatic direction sensing.
This 4-bit noninverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65V to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. VCCA should not exceed VCCB.

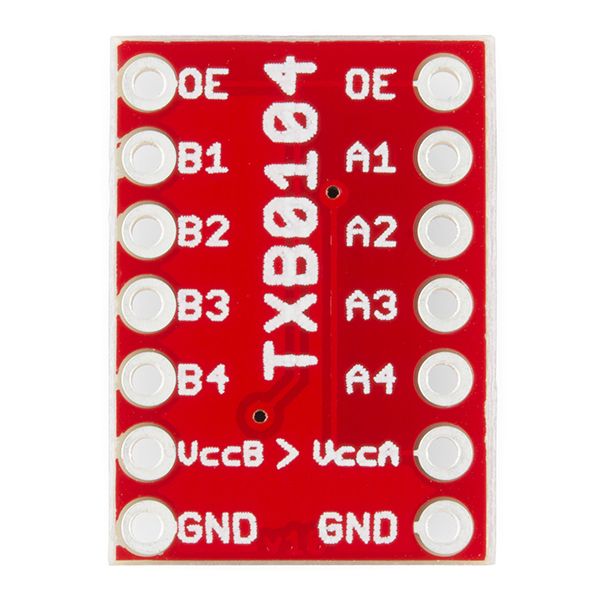

We have broken out each pin for this modules for you to easily access both the A and B ports.
Features:
- 1.2V to 3.6V on A Port and 1.65V to 5.5V on B Port (VCCA ≤ VCCB)
- VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State
- OE Input Circuit Referenced to VCC
- Low Power Consumption, 5-μA Max ICC
More information:
Datasheet (1285 Kb)
Eagle Files (57 Kb)
