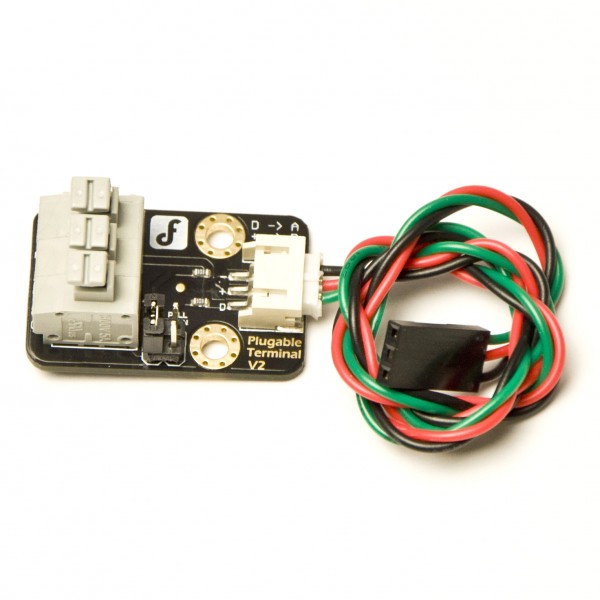

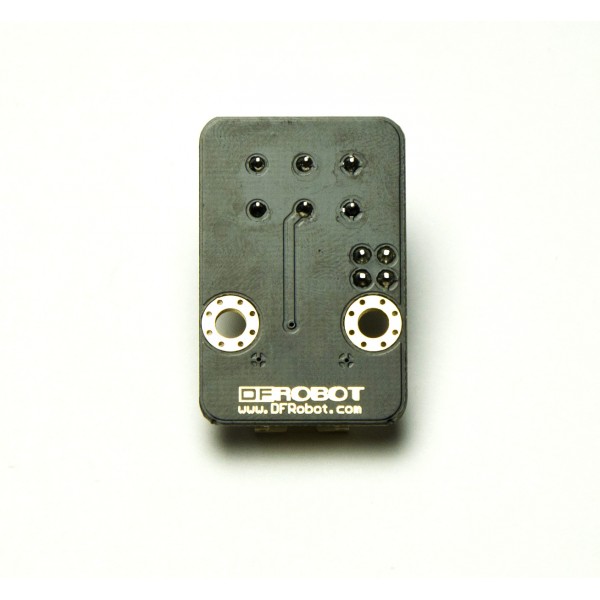

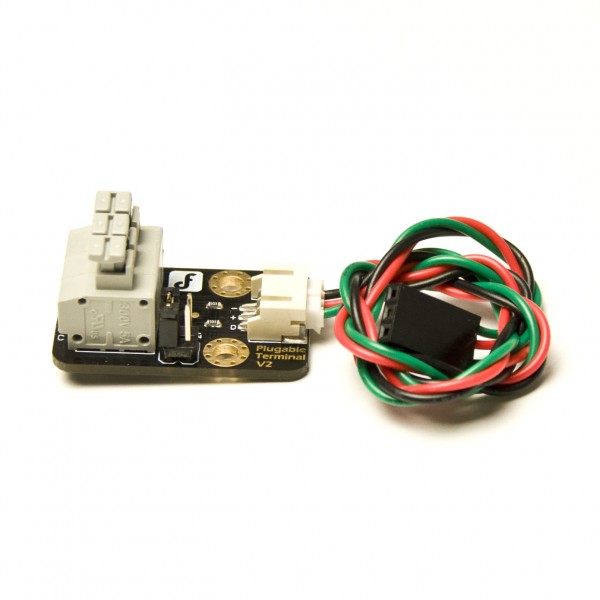

Terminal sensor adapter V2.0
Conector universal para sensores. Ideal para conexiones que requieran resistencias pull-down o pull-up.
COD: DFR0055
Peso: 0.010 Kg
Disponibilidad: Sin Stock
ARS 6000.00
El producto no está disponible para la venta en este momento
Características
Introduction
This is universal sensor adapter V2.0, it can be accessed by digital input modules and analog input module. The module with Arduino sensor expansion board, in combination.Improvment compare with the old version,we add a 10K resistor between A & B, A & C respectively,so that you needn't to connect a addition resistor while the sensor must have a pull-up or pull-down resistor. Why need a pull-up or pull down resistor, please refer to"Understanding pull-up and pull-down resistors"
Generally speaking, this terminal provides a much easier way to connect a switch or any modules that requires pull-up/down resistor to microcontroller
Specifications
- Voltage: +5 V
- Current: <1000mA
- Size: 22x34mm
Shipping List
- Terminal Sensor Adapter V2.0 (1 unit)
Schematic (65 Kb)
