4.3 LCD Touch Display for BeagleBone
Display touch de 4.3" resistivo para BeagleBone Black. Incluye 7 pulsadores.
COD: 4DCAPE43T
Peso: 0.250 Kg
Disponibilidad: Sin Stock
ARS 115909.00
El producto no está disponible para la venta en este momento
Características

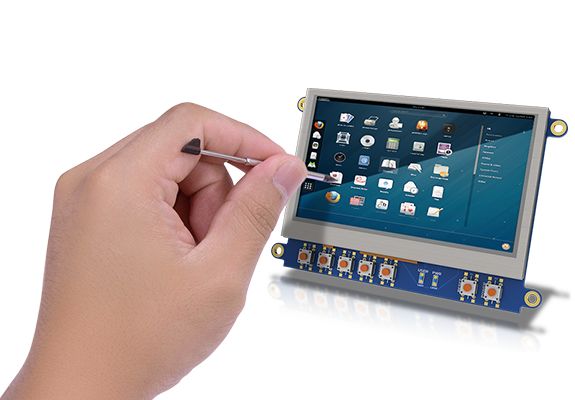

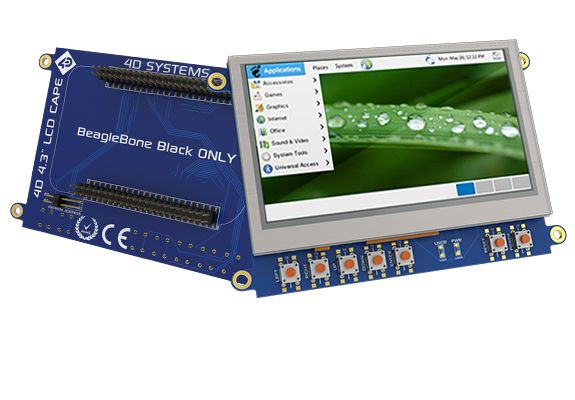

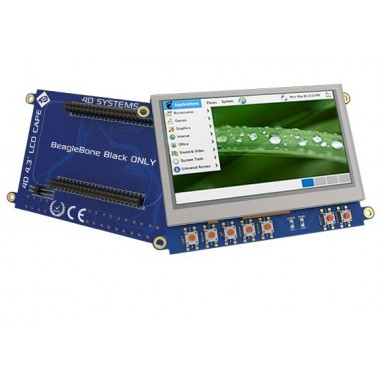

The 4DCAPE-43 is specifically designed for the Beagle Bone Black (BBB), which provides a 4.3” display for the BBB for direct user interaction and resistive touch display. The CAPE conveniently features a 4.3” TFT LCD 480x272 resolution display and seven push buttons.

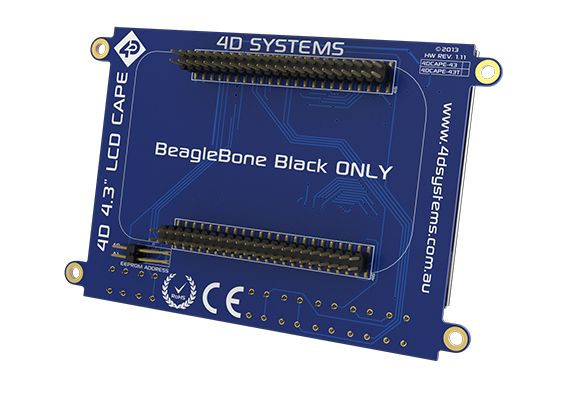

The Beagle Bone Black connects directly to the back of the 4DCAPE-43, and provides everything the CAPE requires such as power and display signals. It also includes 4 mounting holes for easy panel/enclosure mounting.
Please note that the 4DCAPE-43 is designed to be the primary display for Beagle Bone Black only and cannot be programmed using 4D Systems' Workshop 4 IDE.
Features:
- 4.3” TFT LCD Display, 480x272 Resolution

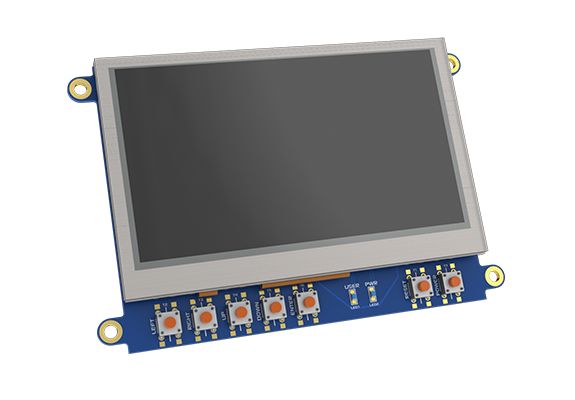

- 7 push buttons, including LEFT, RIGHT, UP, DOWN, ENTER, RESET and POWER
- 2 LED’s, one to indicate Power and one for User, which could be configured as required
- Fully compatible with existing drivers already written for the Beagle Bone.
- 3.5mm mounting holes, enabling standard M3 screws/bolts to fasten the display to an enclosure, panel or an alternative mounting solution
- Powered directly from the Beagle Bone Black, no additional power required
4DCAPE-43 Datasheet (1157 Kb)
4DCAPE-43 STEP Model (Simplified Version) (1611 Kb)
