Digital Oscilloscope DIY Kit

Digital Oscilloscope DIY Kit

Kit para armar un osciloscopio digital. Características principales: ancho de banda 1MHz, frecuencia de muestreo 5MS/s, resolución 8 bits. Componentes SMD pre-soldados, restando solamente montar los de inserción. No incluye fuente de alimentación.

COD: SFKIT09484

Peso: 0.140 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 113197.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

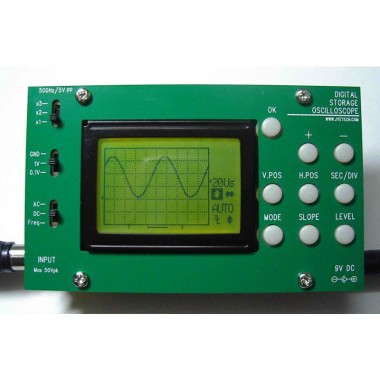

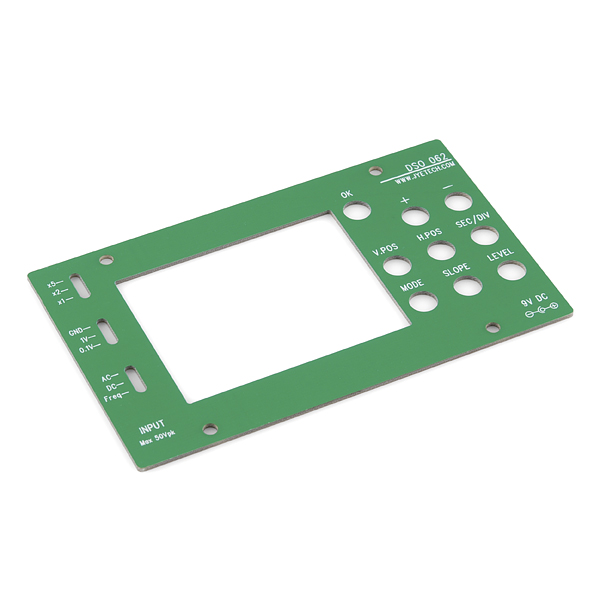

Description: This kit includes everything you need to build your very own, fully functional, digital oscilloscope. Once you've got it up and running, the oscilloscope features up to 5M samples/second, 8-bit resolution, up to 50Vpp max input voltage, and more!

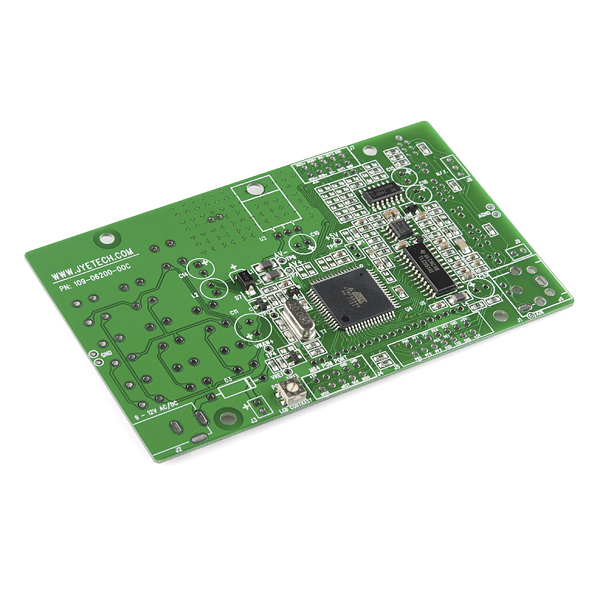

This kit includes a semi-populated PCB, with all of the surface mount components already soldered on for you. The components left for you to solder are all through-hole. This is on the higher end of difficulty as far as through-hole kits go.

This kit pairs nicely with our BNC Probe Kit! A 9V power supply is required to run the oscilloscope; supply is not included.

Note: We are now shipping a newer revision of this kit. The part number is 109-06200-00C. New pictures are forthcoming.

Features:

  • 9VDC power supply voltage
  • 5M samples/second (AUTO mode only)
  • 8 bit resolution
  • 256 sample memory depth
  • 1MHz analog bandwidth
  • 100mV/Div-5V/Div sensitivity
  • 1MΩ impedance
  • 50Vpeak-to-peak max input voltage
  • DC/AC coupling
  • Save and display up to 6 captures to memory
  • Transfer screen capture to PC as a bitmap file (serial adapter not included)

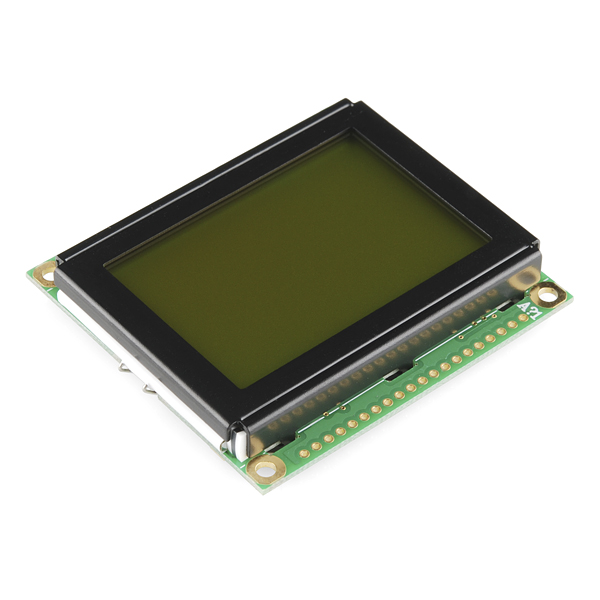

  • Backlit LCD display

Dimensions:

  • 110x65x25mm
  • Weight: 70g
