Pi MATRIX - 8X8 LED Matrix with IO for the Raspberry Pi GPIO

Pi MATRIX ! 8X8 LED Matrix with IO for the Raspberry Pi GPIO

Módulo de IO con display de 8x8 para Raspberry Pi. Se suministra en formato de kit para armar.

COD: ERA0005KIT

Peso: 0.060 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 34857.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

John Jay based in Georgia, USA, is a retired engineer who designed some boards for the Raspberry Pi to help his partner to learn Raspberry Pi. Although at first it was a small act that just for his friends, but with the growing people in the open-source community participating, more and more people find that these packages really works. So, he decided to releases these kits. Cooperated with Elecrow, these packages have been produced quickly. And here with Elecrow, we not only ensured the quality, but also released and collected the usage or Experiences of these kits, to help more people enter the world of Raspberry Pi as quickly as possible

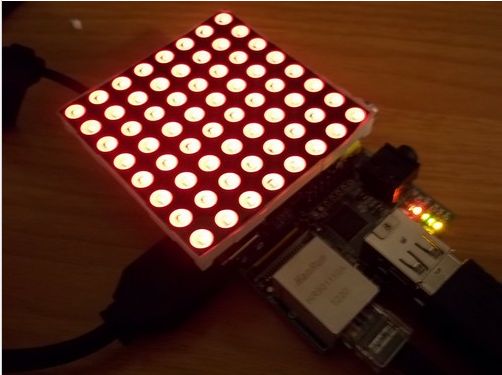

This Pi Matrix includes the Driver IC, 8x8 LED matrix, the Pi Matrix board and some connectors, to help you learning and building a 8x8 LED display with Raspberry such as the Matrix With Jackson Music and Matrix Crash

You need to solder the Kit by yourself. Please refer to http://mypishop.com/Pi%20MATRIX.html. Thanks to our customer, there is also a detailed solder and use guide at:http://w8bh.net/pi/PiMatrix1.pdf and http://w8bh.net/pi/PiMatrix2.pdf

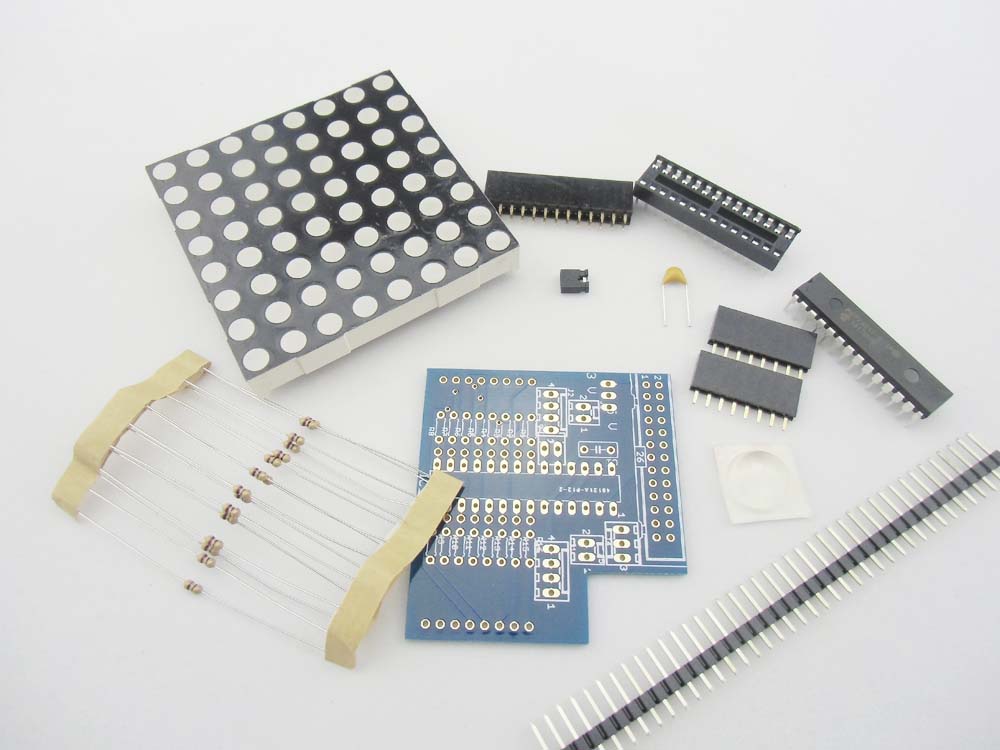

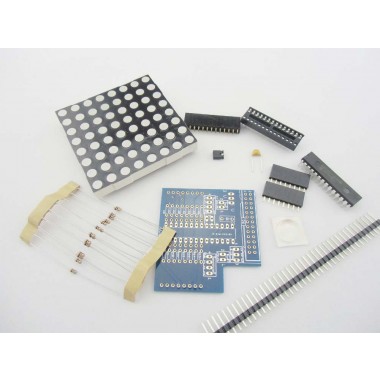

Partlist

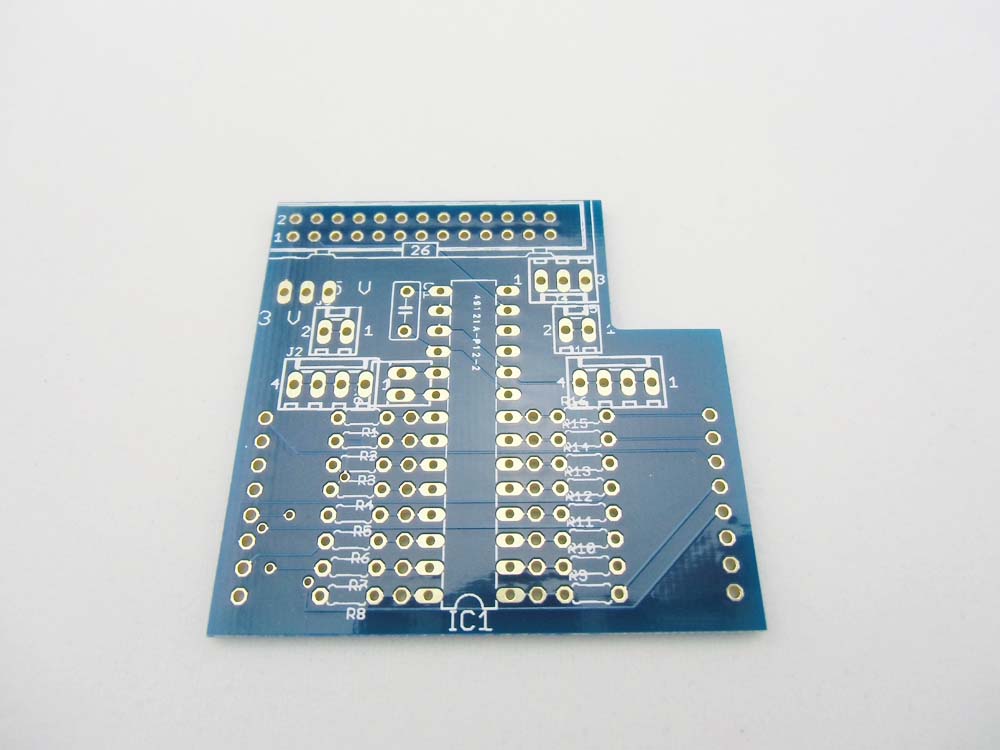

  • Pi Matrix board x1

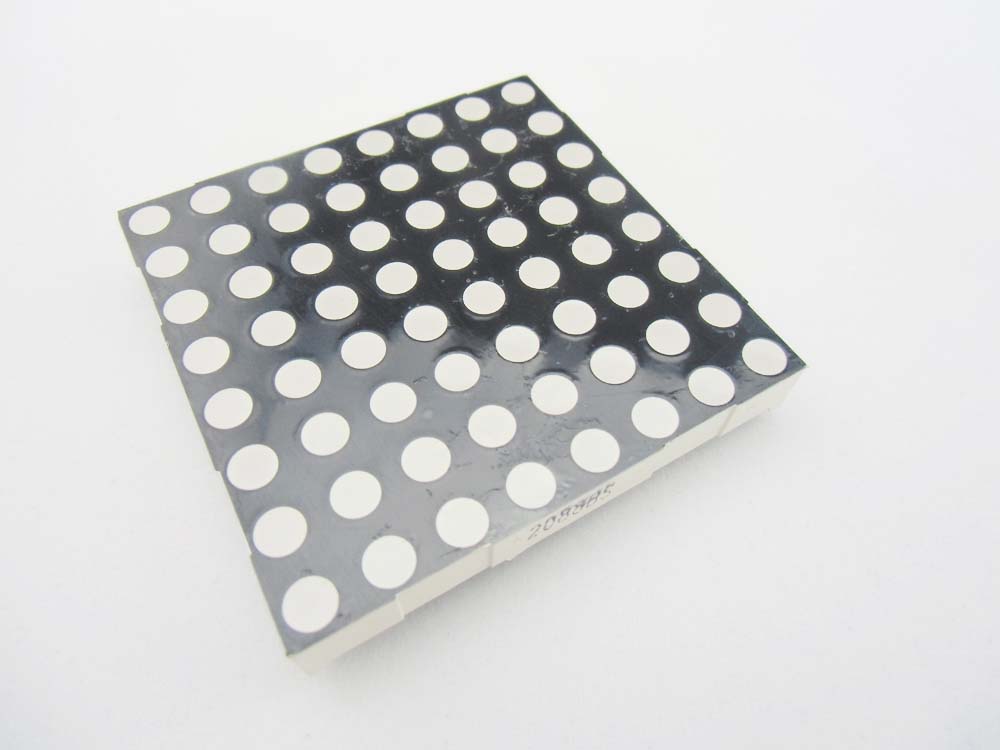

  • 8x8 Matrix x1
  • 8 Pin Connector x2

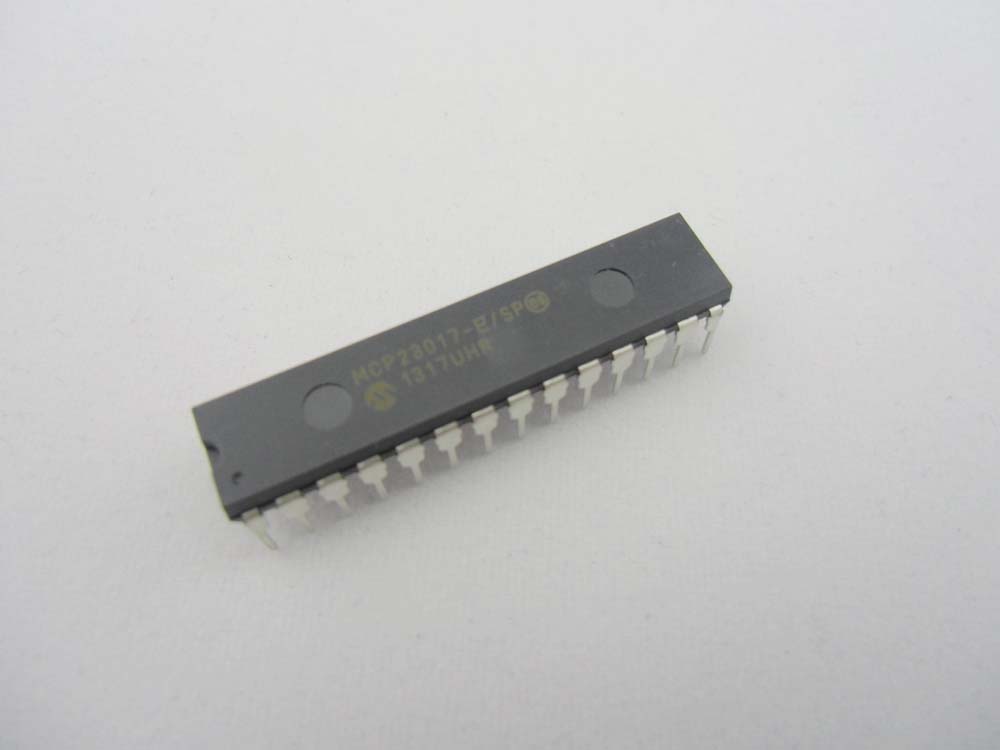

  • Driver IC: x1
  • Female Connector x1
  • 26 Pin Connector x1
  • IC Socket x1
  • Resistor x15
  • Gasket x1
