Modulo Rele Controlado por Luz
Modulo relé de 250VAC/10A controlado por iluminación. Puede utilizarse como interruptor crepuscular, protegiéndolo de la intemperie.
COD: ESPM22001S
Peso: 0.024 Kg
Disponibilidad: En Stock
ARS 9060.00
El producto no está disponible para la venta en este momento
Características
Description

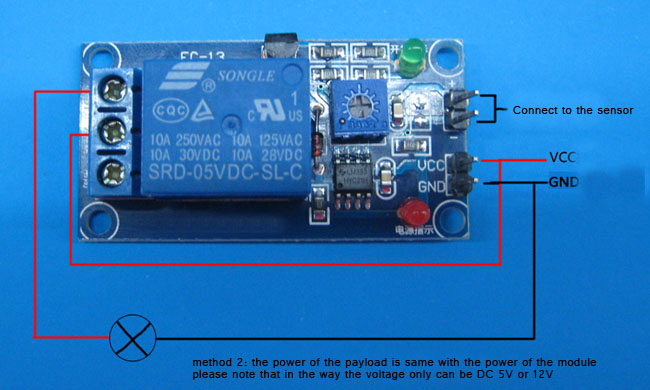

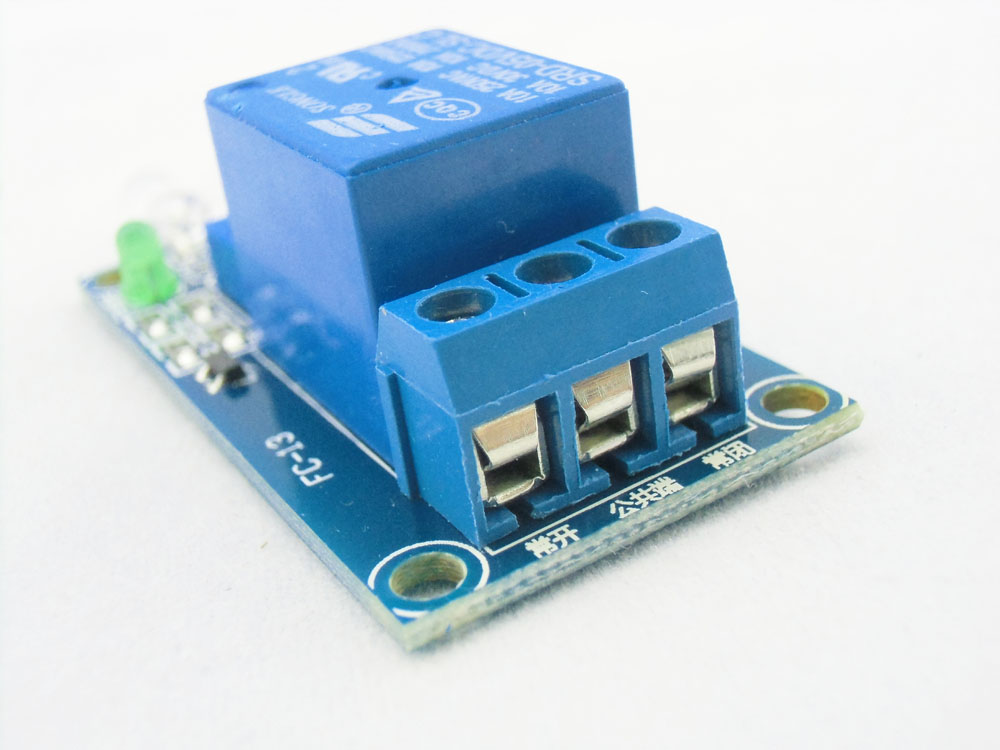

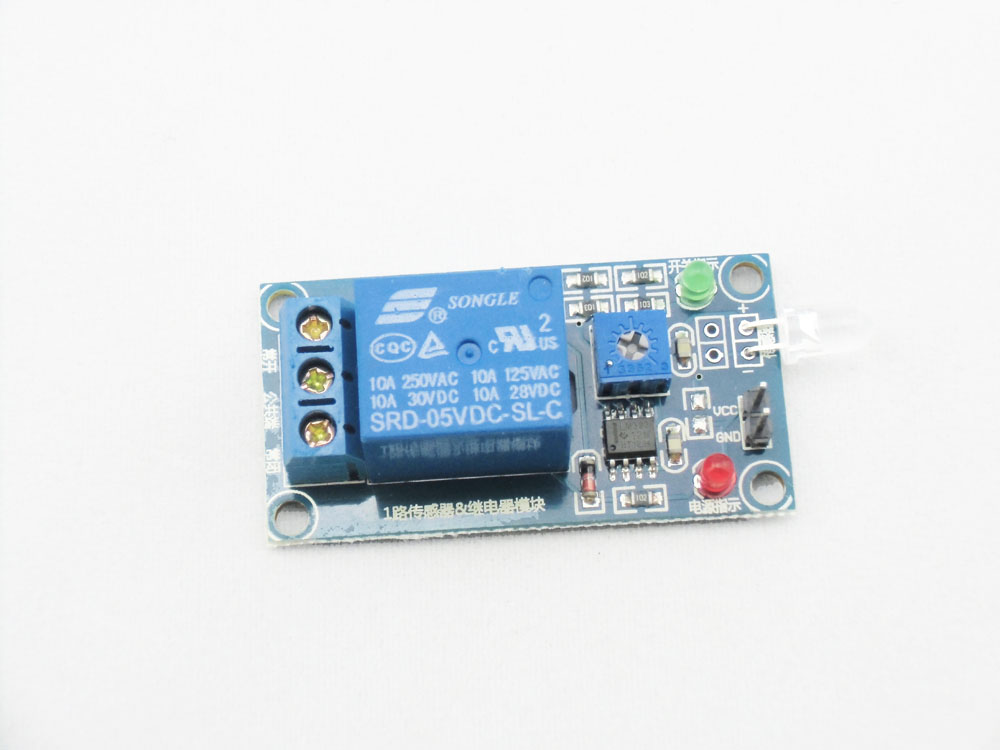

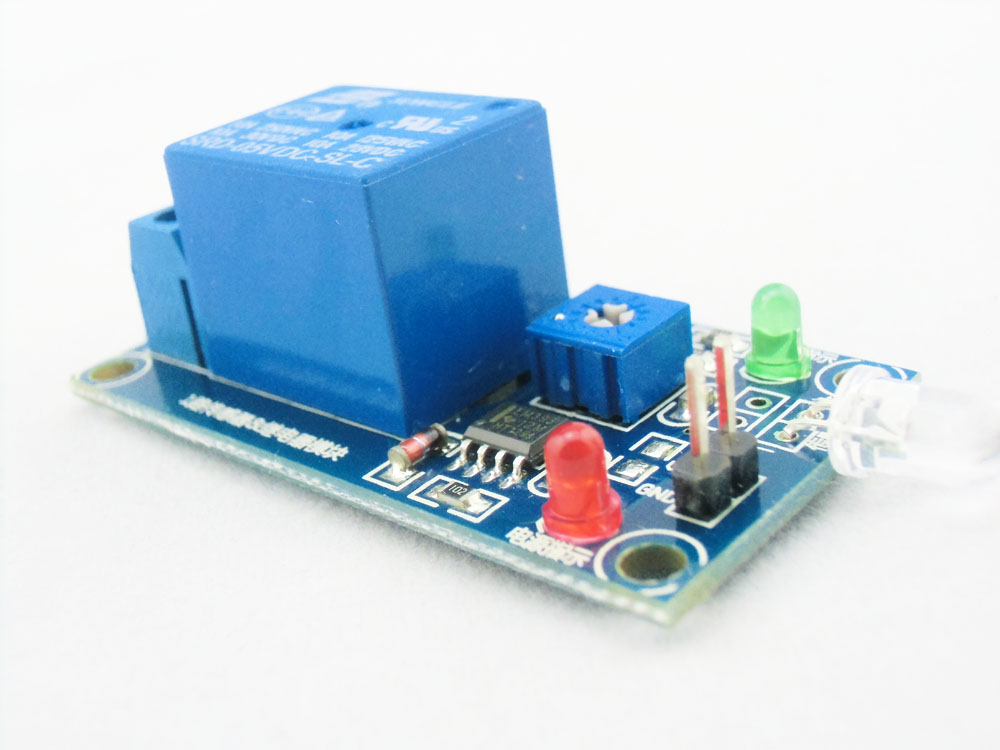

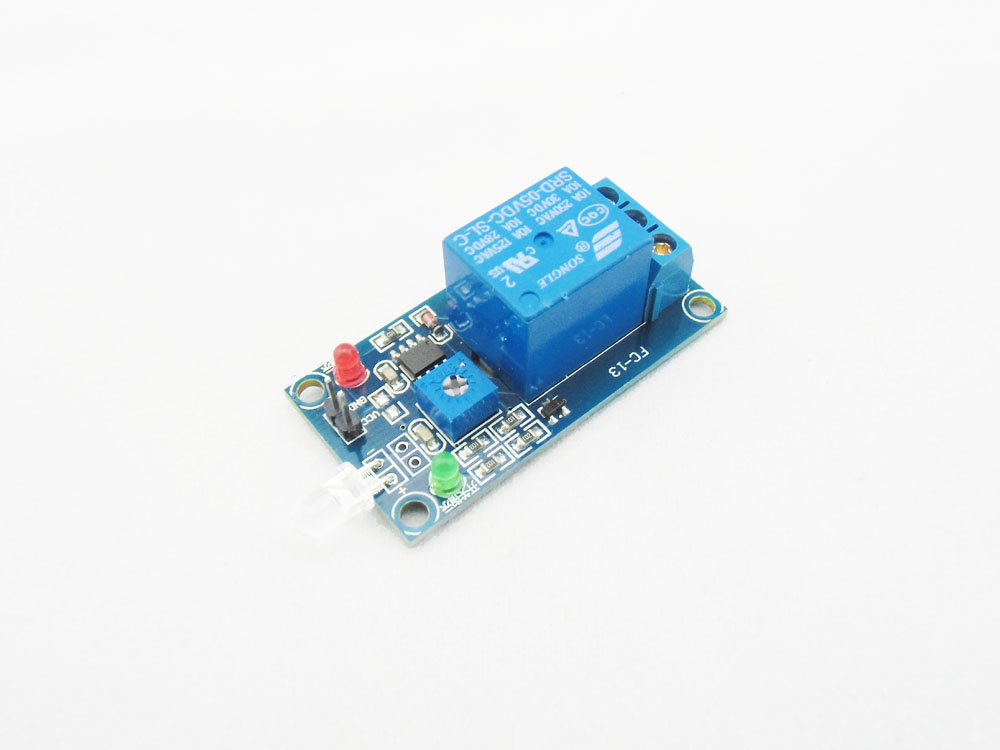

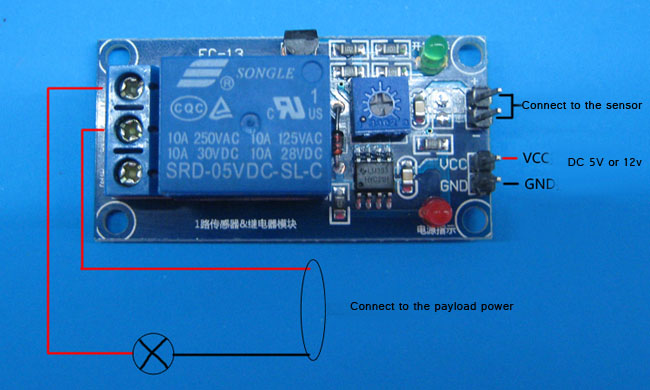

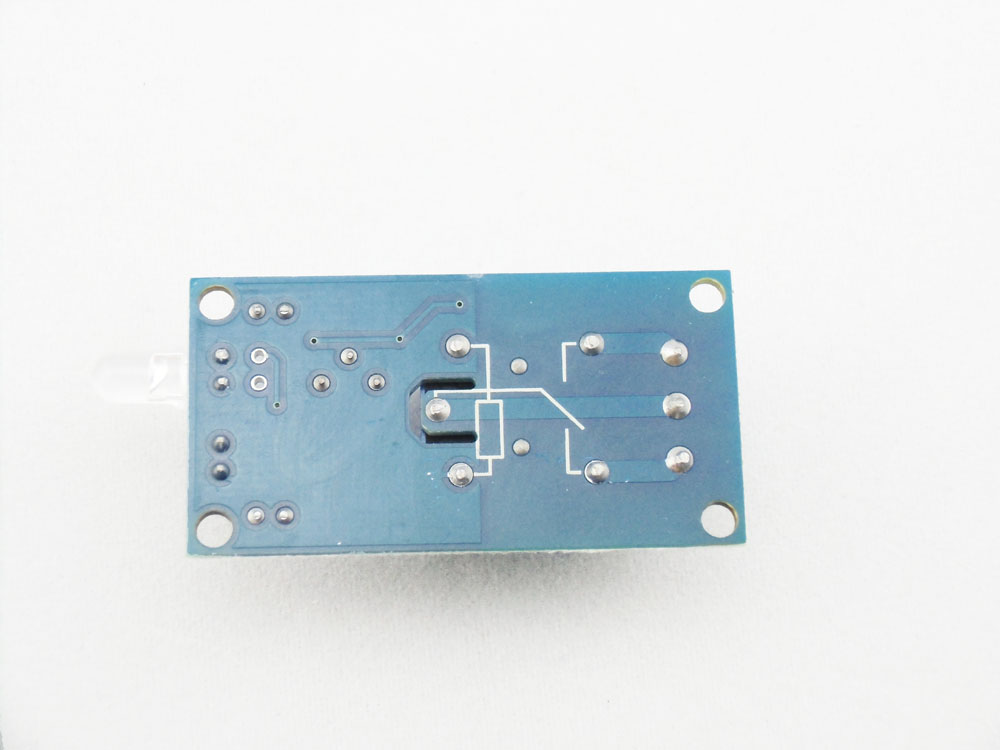

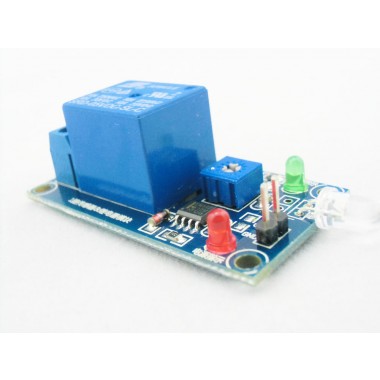

This is a light controlled relay, you can set the relay on/off when the illuminance is higher/lower than the illuminance you set. The peak voltage capability is upto 250V at 10A when AC and 30V at 10A when DC.
With this module, it will be much more easy to implement applications that needs auto power up/down with the illuminance varies.This module uses the photosensitive diode to detect the light, which has a more stable directivity than the ordinary photo resistance.
Adjust the on-board potentiometer to adjust the sensitivity. The relay would ON/OFF when the luminance is higher/lower than the threshold set by the potentiometer.
Application Idea
- Streetlight auto on/off
- Auto-mobile lamp control
Features
- Illuminance threshold adjustable;
- LED indicator for relay;
- Easy to use in application
- Sensitivity adjustable
