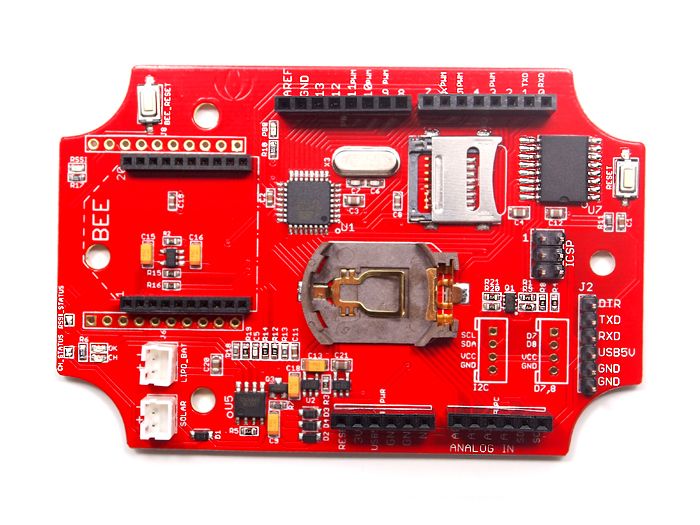

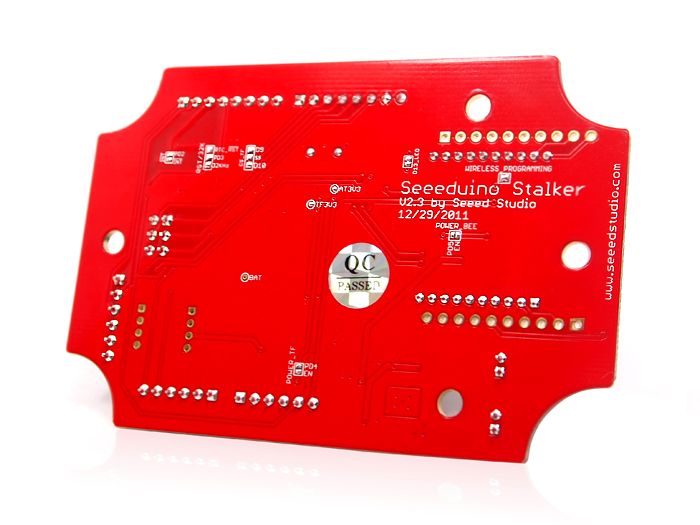

Seeeduino Stalker v2
Board compatible Arduino para nodo de redes de sensores inalámbricas (WSN). Incluye RTC, sensor de temperatura, socket microSD, socket XBee, y cargador de baterías de litio.
COD: SEARD104D2P
Peso: 0.030 Kg
Disponibilidad: En Stock
ARS 32575.00
El producto no está disponible para la venta en este momento
Características
Seeeduino Stalker is a feature rich Arduino compatible Wireless Sensor Network node. Its modular structure and onboard peripherals makes it convenient to log and time stamp sensor data on a periodic basis. The Seeeduino Stalker is a good candidate for all your tracking, monitoring and control projects.
Features
-
Arduino compatible, based on Seeeduino
-
Onboard microcontroller: ATmega328P
-
Onboard Real Time Clock chip with a supercap as a backup power source
-
Serial interface with DTR for auto reset during programming when operating in standalone mode. (For programming, UartSBee must be bought separately)
-
MicroSD card socket
-
I2C Pin header (operation voltage is selectable: 5.0V or 3.3V)
-
User defined switch and LED
-
Bee series socket - 2*10 pin 2.0mm pitch (which will mate with - one at a time - any of the wireless modules: XBee, BluetoothBee, GPSBee or RFBee.)
Please note that The IO Ports work in 0~3.3v level only.
Wiki (3213 Kb)
Eagle files (17 Kb)
