pcDuino v2
Plataforma ARM Cortex A8 de alta performance. Posee 2GB de memoria Flash, salida HDMI, Ethernet, WiFi y conectores compatible con Arduino.
COD: DFR0292
Peso: 0.100 Kg
Disponibilidad: Sin Stock
ARS 45632.00
El producto no está disponible para la venta en este momento
Características
Introduction

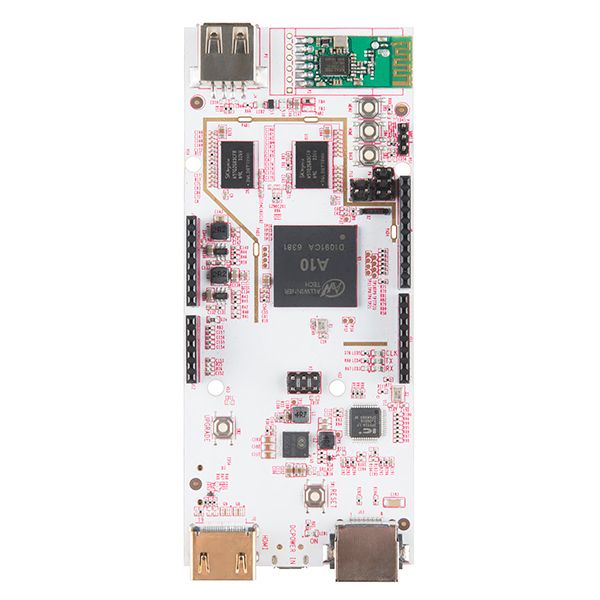

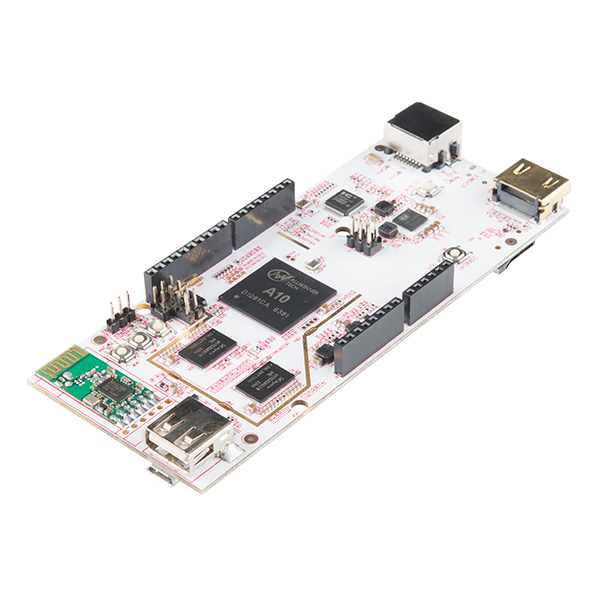

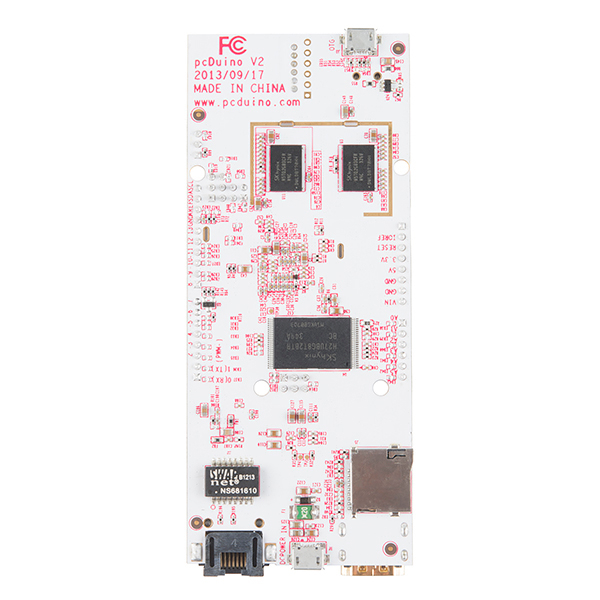

pcDuino V2 is a high performance, cost effective mini PC platform that runs PC like OS such as Ubuntu and Android ICS.pcDuino has hardware headers interface compatible with Arduino, HDMI output, SD card slot, and USB plugs. It is powered by 1GHz ARM Cortex A8 CPU and features 1GB RAM and 2GB FLASH.
pcDuino outputs its screen to HDMI enabled TV or monitor via the built in HDMI interface. It is specially targeted for the fast growing demands from the open source community. The platform could run full blown PC like OS with easy to use tool chain and compatible with the popular Arduino ecosystem such as Arduino Shields and open source projects etc.
pcDuino V2 has a built-in WiFi module and Arduino headers. Ubuntu images are same for both pcDuino and pcDuino V2.
Hardware Specifications
- CPU: 1GHz ARM Cortex A8
- GPU: OpenGL ES2.0, OpenVG 1.1 Mali 400 core
- DRAM: 1GB
- Onboard Storage: 2GB Flash, microSD card (TF) slot for up to 32GB
- Video Outpu: HDMI
- OS: Linux3.0 + Ubuntu 12.04Android ICS 4.0
- Extension Interface: Arduino Headers
- Network interface: 10/100Mbps RJ45 and on-board WiFi module
- Number of USB Host port: 1
- Power: 5V, 2000mA

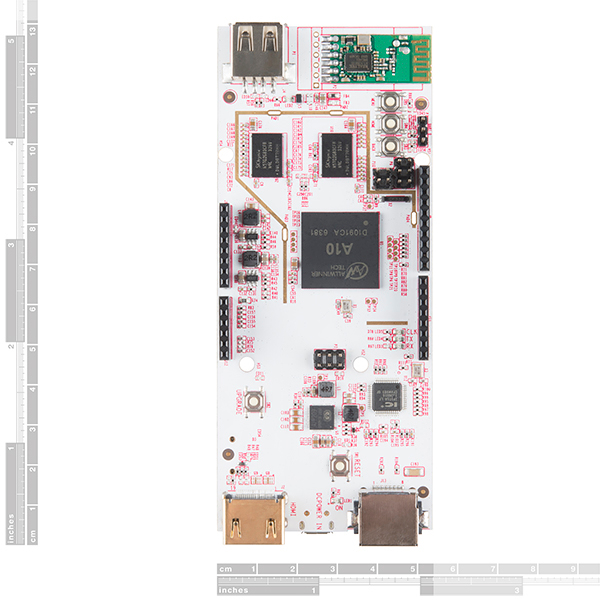

- Overall Size: 125mm * 52mm
Software Specifications
OS: Ubuntu 12.04
Android ICS 4.0
API: All the arduino shield pins are accessible with the provided API
It consists of API to access the following interfaces: UART,ADC,PWM,GPIO,I2C,SPI
Programming language support: C, C++ with GNU tool chain, Java with standard Android SDK, Python
Shipping List
- pcDuino v2 1 uint
Documents(add links)
User Guide (1232 Kb)
