pcDuino3

pcDuino v3

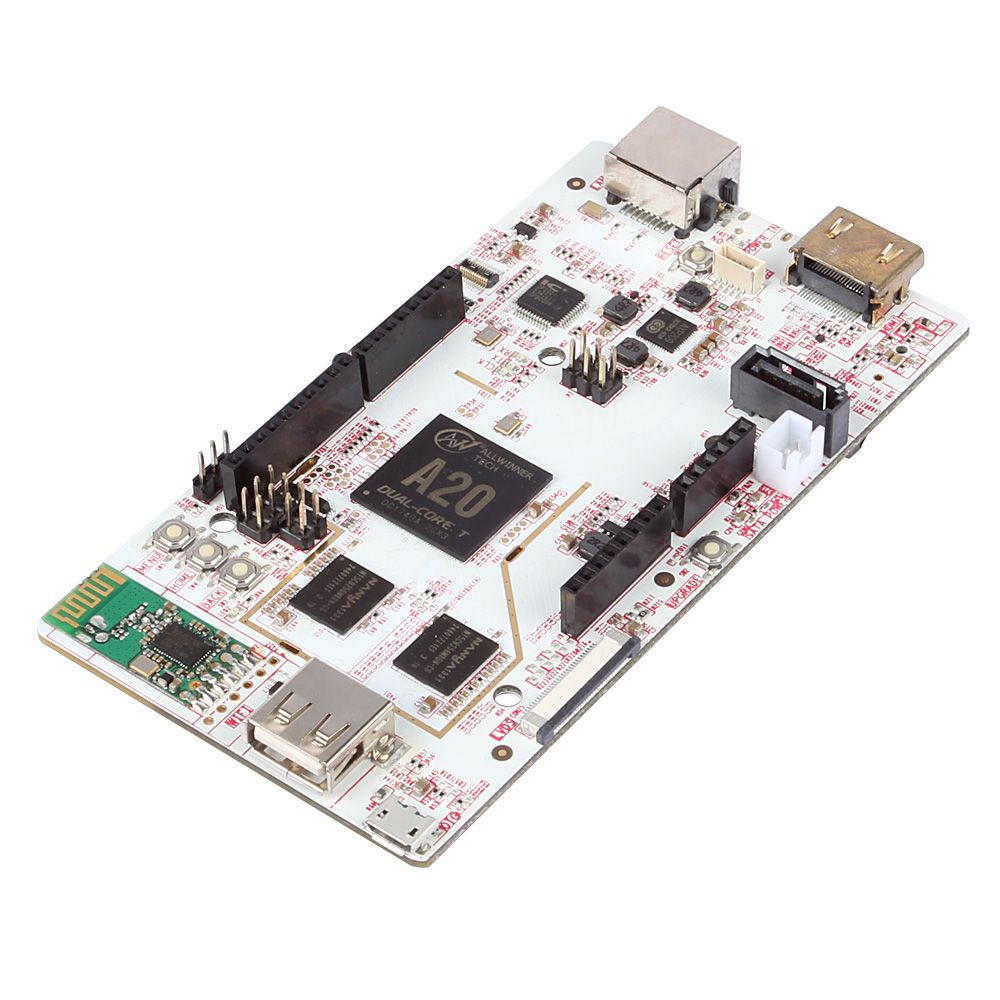

Board pcDuino v3 basada en A20 con 1GHz de reloj. Corre Ubuntu o Android y posee salida HDMI.

COD: PCDUINOV3

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 183293.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Overview

pcDuino3 is a high performance, cost effective single board computer. It runs operation systems such as Ubuntu Linux and Android. pcDuino3 has HDMI interface to output its graphic desktop screen. It could support multi-format 1080p 60fps video decoder and 1080p 30fps H.264 and MPEG4 video encoder with its built-in hardware video processing engine. It targets specially the fast growing demands from the open source community. pcDuino3 provides easy-to-use tool chains and is compatible with the popular Arduino ecosystem such as Arduino Shields.

Hardware Specifications

Items Details
CPU AllWinner A20 SoC, 1GHz ARM Cortex A7 Dual Core
GPU OpenGL ES2.0, OpenVG 1.1, Mali 400 Dual Core
DRAM 1GB
Onboard Storage 4GB Flash, microSD card (TF) slot for up to 32GB
Video Output HDMI 1.4 with HDCP support
OS
  • Ubuntu 12.04
  • Android 4.2
Arduino extension interface Arduino sockets, same as Arduino UNO
14xGPIO, 2xPWM, 6xADC, 1xUART, 1xSPI, 1xI2C
Network interface
  • Built-in WiFi
  • Ethernet 10M/100Mbps
Audio out
  • 3.5mm analog audio interface
  • I2S stereo digital audio interface
LCD LVDS
IR IR receiver
SATA SATA Host socket
Camera MIPI
Battery Li-Poly Battery Interface
USB 1 x USB host, 1xUSB OTG
Power 5V, 2000mA
Overall Size 121mm x 65mm

Software Specifications

Items Description
OS
  • Ubuntu 12.04
  • Android 4.2
Language
  • English
API
  • All the arduino shield pins are accessible with the provided API
  • It consists of API to access the following interfaces:
    • UART
    • ADC
    • PWM
    • GPIO
    • I2C
    • SPI
Programming language support
  • C, C++ with GNU tool chain
  • Java with standard Android SDK
  • Python



Download:

Software

Hardware

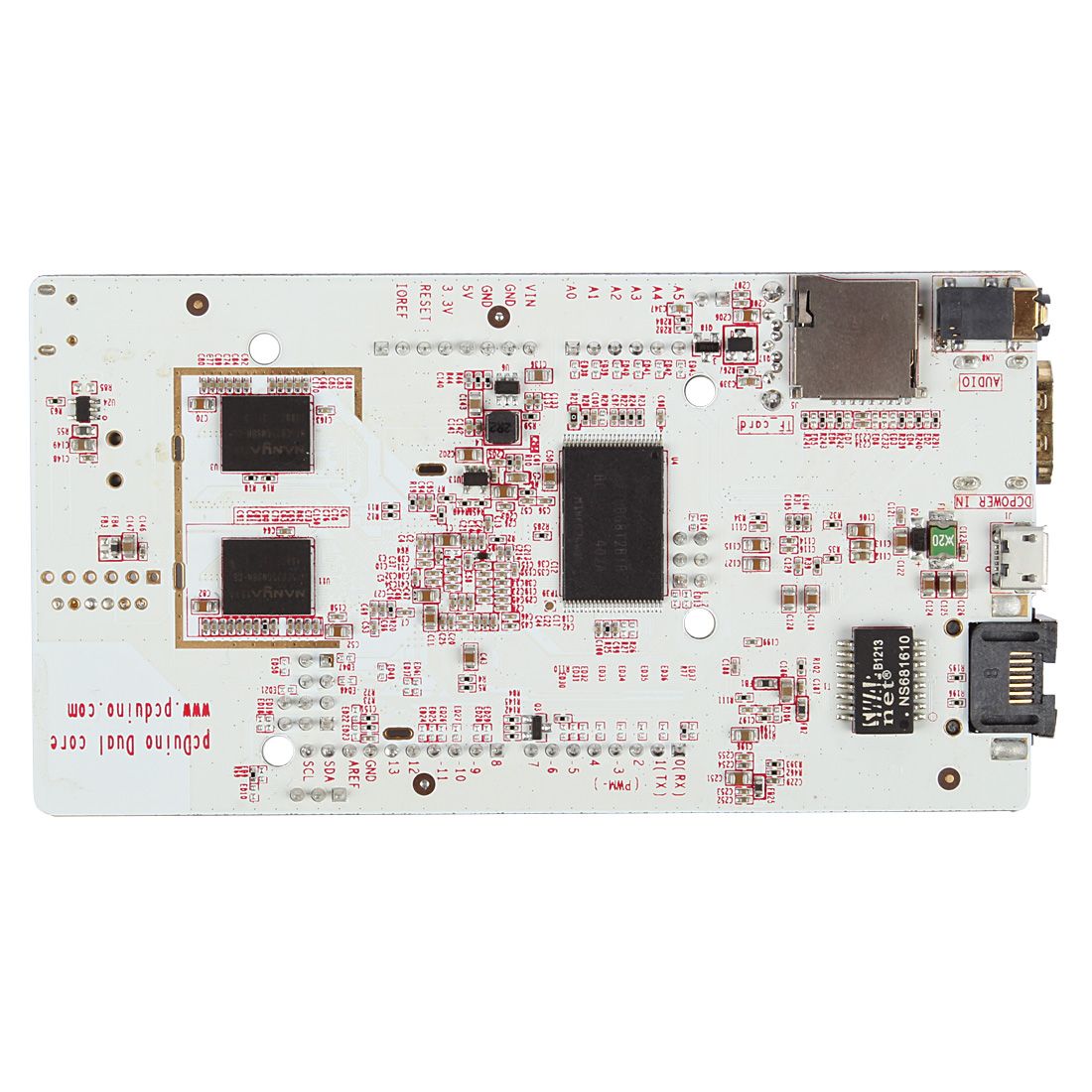

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (19/06/2015 - 15:28)

Fernando, el conector es el blanco pegado al conector HDMI. Es similar al que se ve en esta imagen: http://www.eleco-g.com/80005309-thickbox/conector-aereo-tamiya-macho-2-pines-con1000.jpg

Fernando (18/06/2015 - 17:07)

Hola. Quisiera saber que tipo de conector de alimentación posee la pcduino3 porque no consigo detectarlo en la imagen. Por lo visto, no es plug hueco como el caso de la BeagleBone. ¿Tendrían fuente de alimentación como para esta placa? Muchas gracias

OpenHacks (12/05/2015 - 15:26)

Ramiro, los shields Arduino son compatibles con la pcDuino3 - Dev Board. El costo del envío depende de la empresa que elijas para hacer el trasnporte (OCA, Correo Argentino). Saludos

Ramiro (12/05/2015 - 01:27)

Hola, queria saber si las shields de arduino UNO serían compatibles con esta PCduino, y cuanto me saldria el costo de envío a Córdoba capital, gracias.
