XBee Explorer USB

XBee Explorer USB

Board con conector de comunicación USB para módulos XBee y compatibles

COD: SFWRL11812

Peso: 0.009 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 53420.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

This is a simple to use, USB to serial base unit for the Digi XBee line. This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the XBee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the XBee unit.

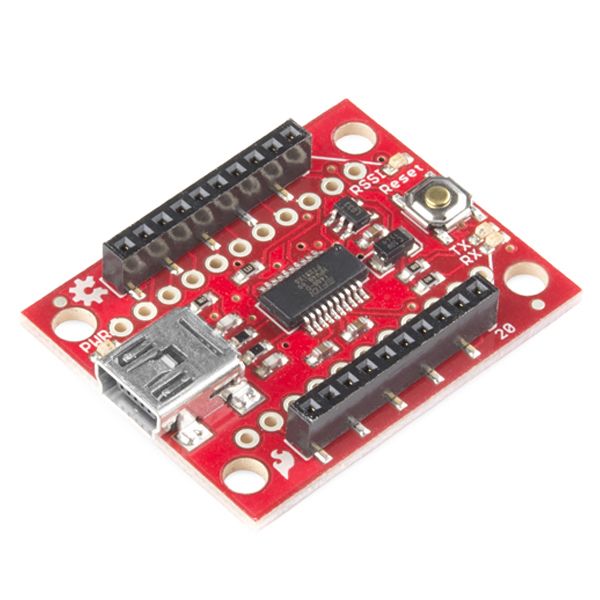

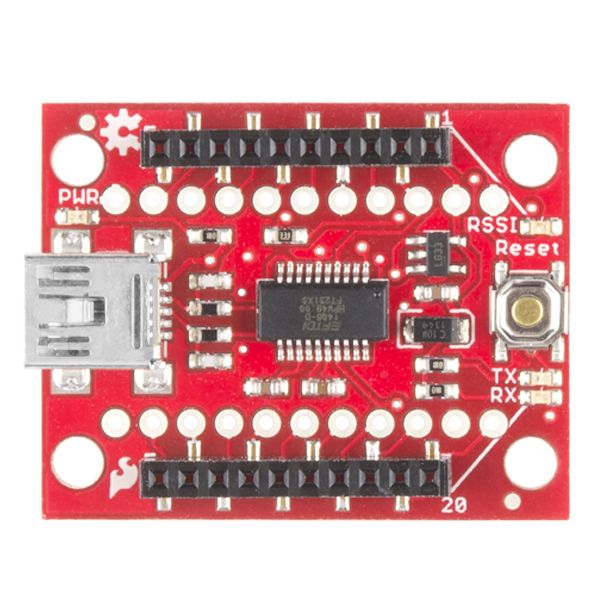

The highlight of this board is an FT231X USB-to-Serial converter. That’s what translates data between your computer and the XBee. There’s also a reset button, and a voltage regulator to supply the XBee with plenty of power. In addition, there are four LEDs that’ll help if you ever need to debug your XBee: RX, TX, RSSI (signal-strength indicator), and power indicator.

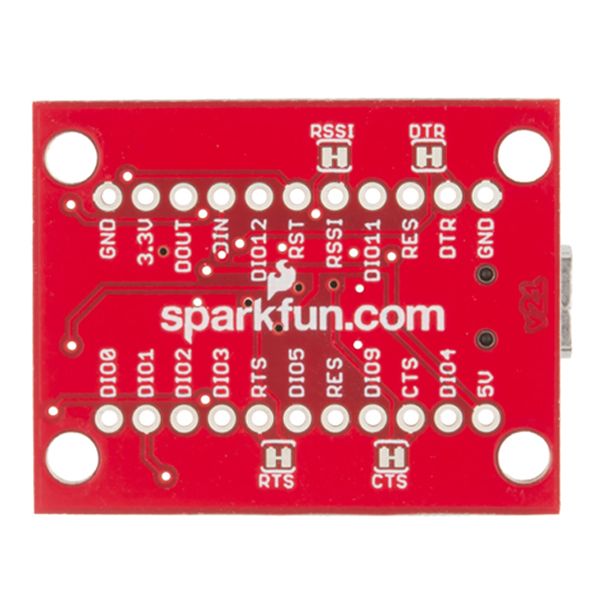

This board also breaks out each of the XBee’s I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the XBee’s extended functionality, you can solder some header pins into those, or even just solder some wire.

Note

There is no XBee included with this Explorer USB.

More information

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (12/09/2016 - 09:38)

Hola Federico, tenemos 7 unidades en stock. Saludos!

Federico (10/09/2016 - 19:21)

Hola, tiene en stock 5 unidades ?

OpenHacks (04/02/2015 - 14:19)

Hola Federico. No, el cable no está incluído y es un cable mini USB estándar. Saludos!

Federico (04/02/2015 - 12:59)

Hola, incluye el cable USB ? Gracias!!!
