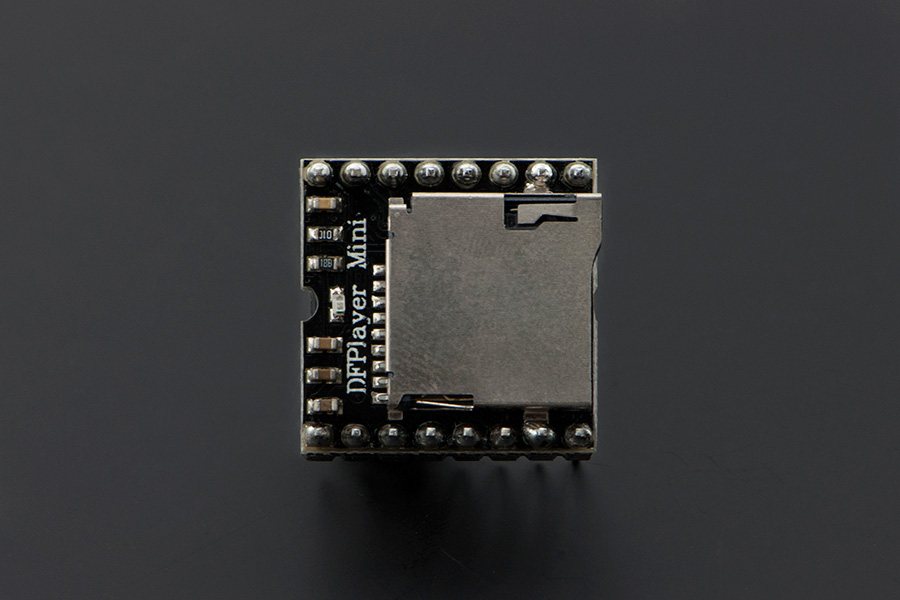

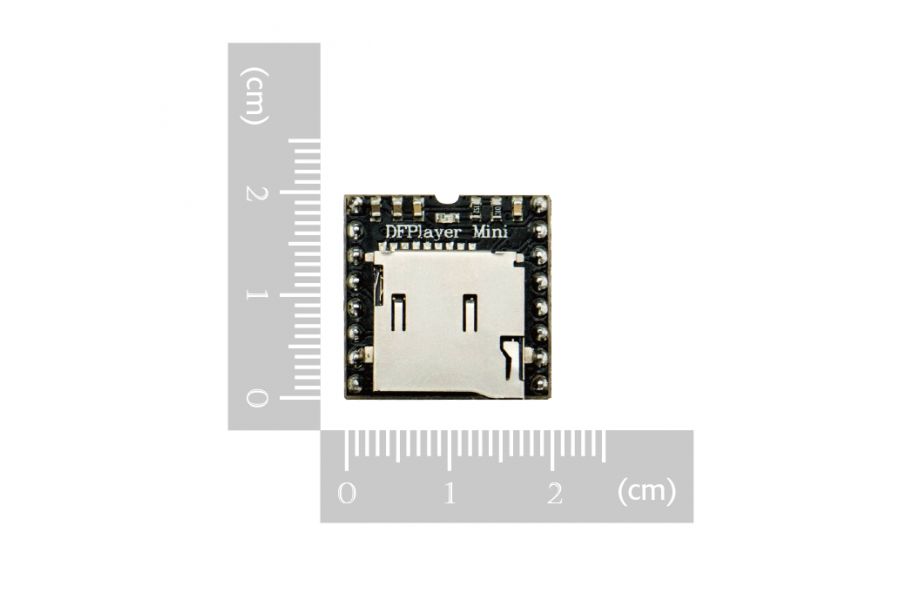

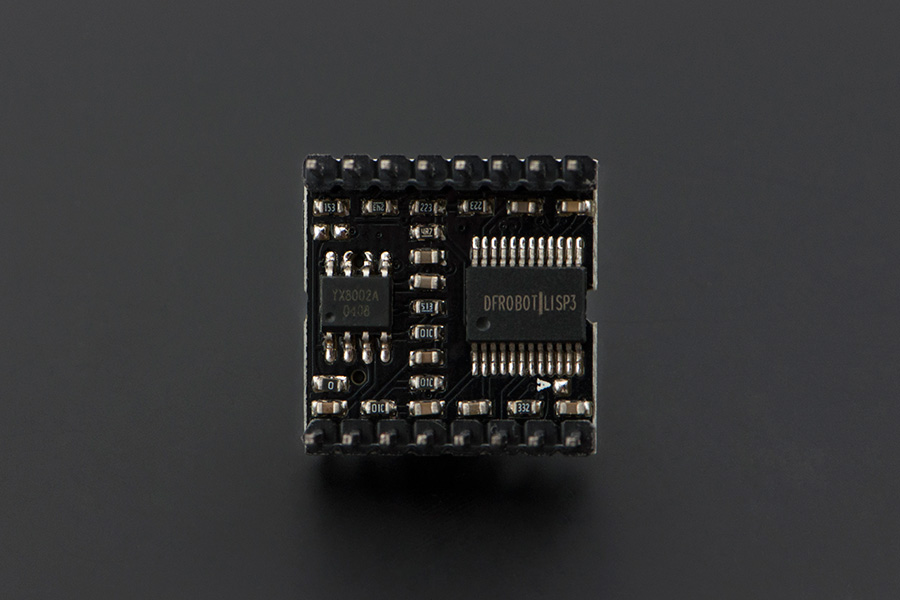

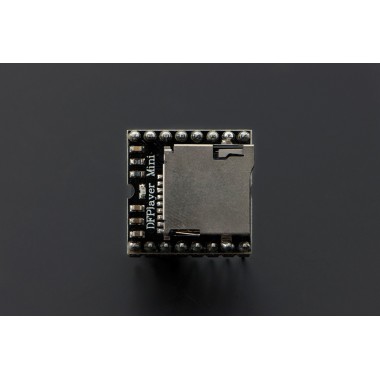

DFPlayer - A Mini MP3 Player

DFPlayer - A Mini MP3 Player

Módulo reproductor de MP3 almacenados en memorias SD. Posee interfaz de comunicación UART y es compatible con Arduino.

COD: DFR0299

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 8974.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Introduction

The DFPlayer perfectly integrates hard decoding module, which supports common audio formats such as MP3, WAV and WMA. Besides, it also supports TF card with FAT16, FAT32 file system. Through a simple serial port, you can play the designated music without any other tedious underlying operations.

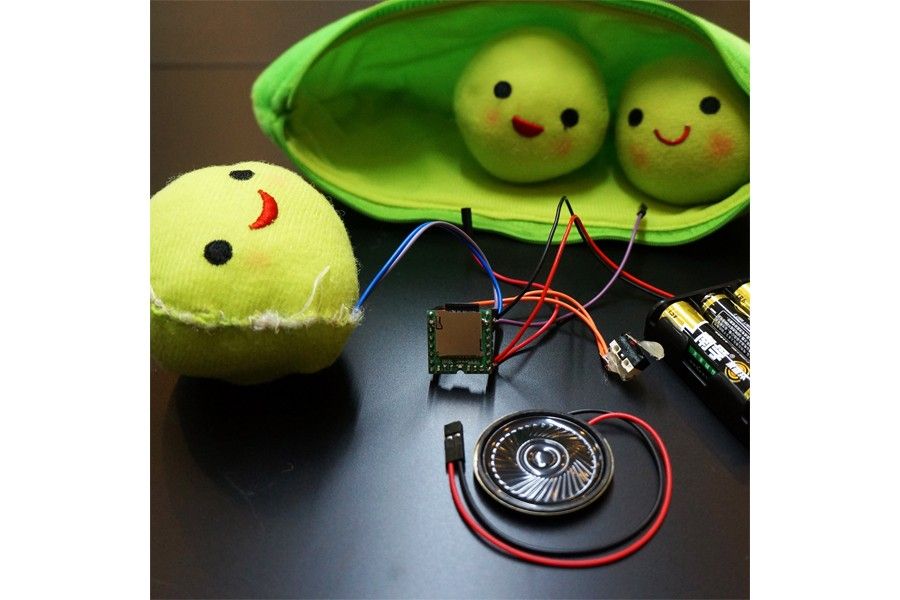

Sing for the moment! The DFPlayer Mini is a small and low cost MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

Applications

  • Car navigation voice broadcast;
  • Road transport inspectors, toll stations voice prompts;
  • Railway station, bus safety inspection voice prompts;
  • Electricity, communications, financial business hall voice prompts;
  • Vehicle into and out of the channel verify that the voice prompts;
  • The public security border control channel voice prompts;
  • Multi-channel voice alarm or equipment operating guide voice;
  • The electric tourist car safe driving voice notices;
  • Electromechanical equipment failure alarm;
  • Fire alarm voice prompts;
  • The automatic broadcast equipment, regular broadcast.

Specifications

  • Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  • 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
  • Fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
  • A variety of control modes, I/O control mode, serial mode, AD button control mode
  • Advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
  • Audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
  • 30 level adjustable volume, 6 -level EQ adjustable

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (19/09/2016 - 10:19)

Hola Juan, de momento no tenemos. Te avisaremos con un correo automático ni bien ingrese nuevamente. Saludos!

Juan Alberto (17/09/2016 - 12:58)

Buenas!, hay en stock? Slds. Juan

OpenHacks (22/12/2015 - 16:17)

Hola German, volveremos a traer, te avisaremos con un correo automático cuando ingrese. Saludos!

German (21/12/2015 - 12:37)

Hola, van a taer nuevamente el DFPlayer?

OpenHacks (01/07/2015 - 18:01)

Despues de leer un poco las hojas de datos me parece que esa función no es posible, pero es fácilmente solucionable editando previamente los archivos de audio desde un editor de sonidos, en los que directamente los archivos de audio que cargues en la tarjeta sean las canciones segmentadas, como pistas separadas. De todos modos te recomiendo que leas bien la hoja de datos. Saludos!

Jeronimo (30/06/2015 - 13:49)

Buenas tardes. Hago una consulta. Entiendo que puedan no tener la respuesta. ¿Puedo reproducir una canción desde una posición (minutos:segundos) específicas? Es decir, por ejemplo: Dar play al tema 004.mp3 a partir del segundo 100 (minuto 1 y 30 segundos). Muchas Gracias
