XBee Explorer Dongle

XBee Explorer Dongle

Board de tipo dongle USB para módulos XBee y compatibles. Está basado en FT231X y su formato dongle permite conectarse sin necesidad de cables.

COD: SFWRL11697

Peso: 0.011 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 50354.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

Description

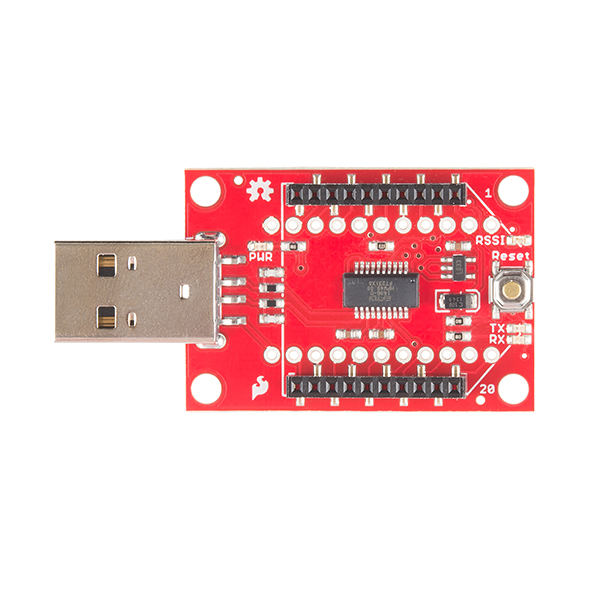

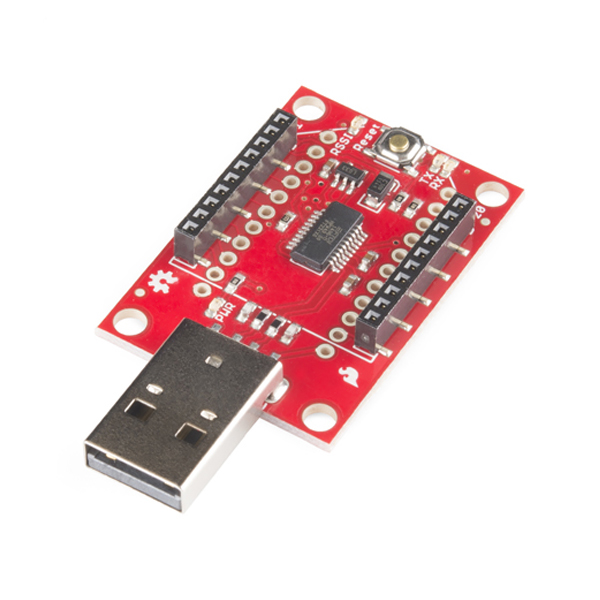

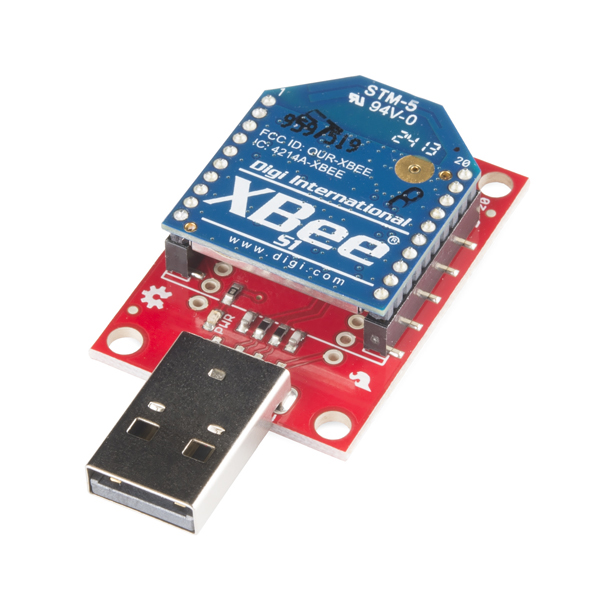

This is the XBee Explorer Dongle unit for the Digi XBee module line. With the XBee Explorer Dongle you can plug the unit directly into your USB port and have it act as a gateway between your computer and the XBee. No cables needed! This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. The on-board voltage regulator is good up to 500mA.

The highlight of this board is an FT231X USB-to-Serial converter. That’s what translates data between your computer and the XBee. There’s also a reset button, and a voltage regulator to supply the XBee with plenty of power. In addition, there are four LEDs that’ll help if you ever need to debug your XBee: RX, TX, RSSI (signal-strength indicator), and power indicator.

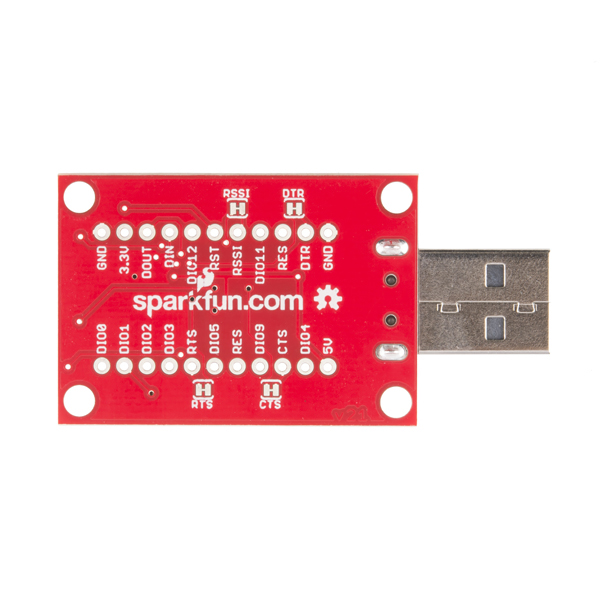

This board also breaks out each of the XBee’s I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the XBee’s extended functionality, you can solder some header pins into those, or even just solder some wire.

Note: There is no XBee included with this Explorer Dongle.

More information

Galería de Imágenes

Comentarios

Escribir Comentario

OpenHacks (31/08/2015 - 16:33)

Hola Federico, este producto lo importamos de SparkFun, quienes utilizan chips originales. Saludos!

Federico (31/08/2015 - 14:52)

El chip ftdi es original ? Gracias
