Productos

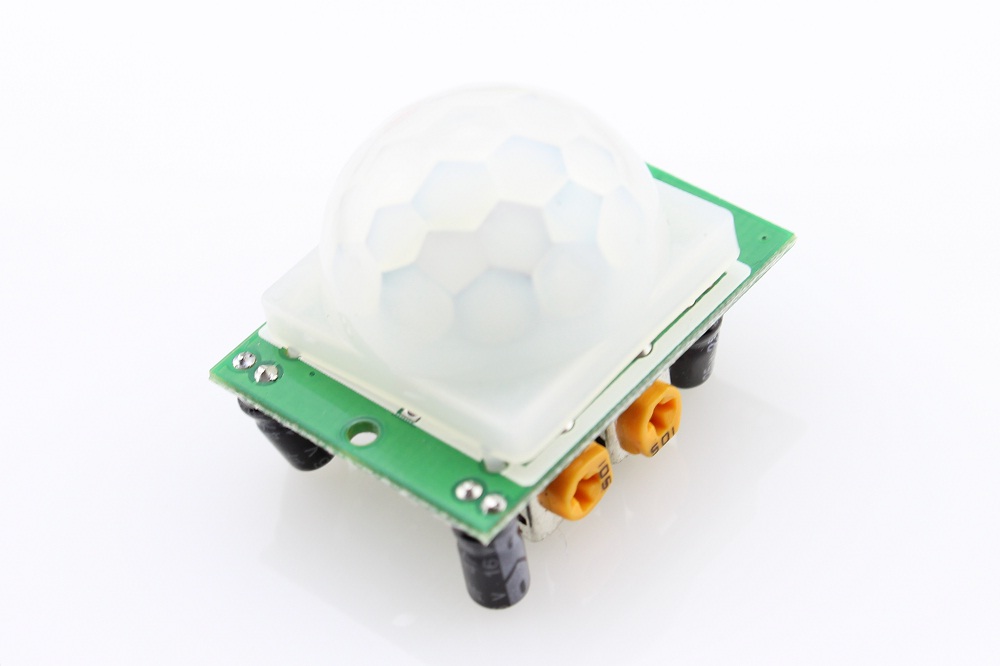

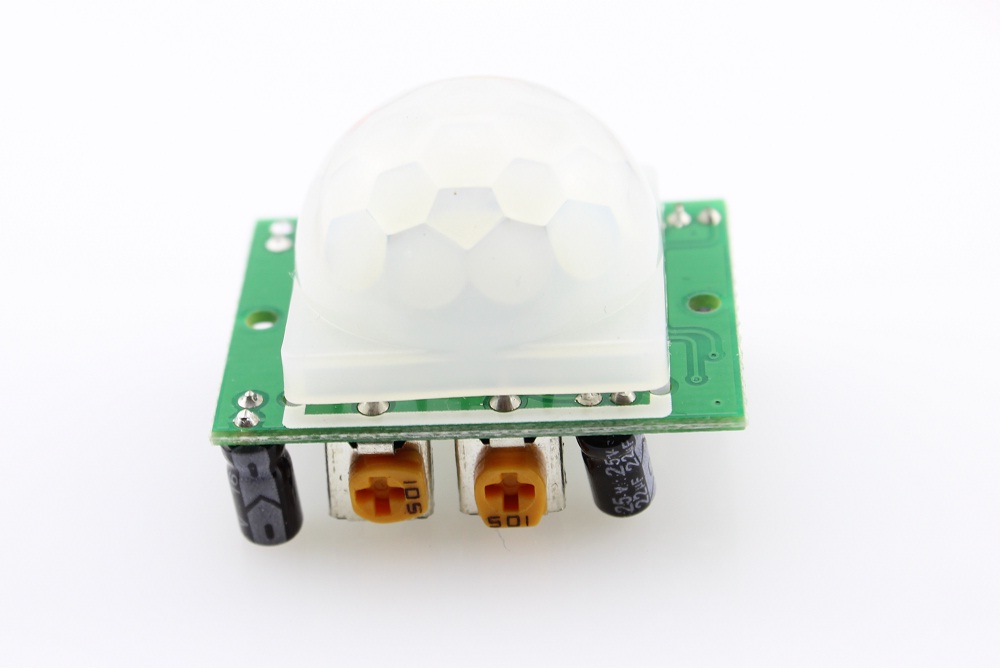

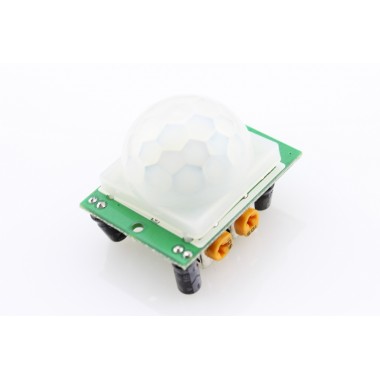

PIR Motion Sensor Module
Sensor de movimiento PIR. Posee 2 potenciómetros para ajustar la sensibilidad y duración de la señal de disparo.
COD: ESOD00101S
Peso: 0.009 Kg
Disponibilidad: Sin Stock
ARS 3752.00
El producto no está disponible para la venta en este momento
Características

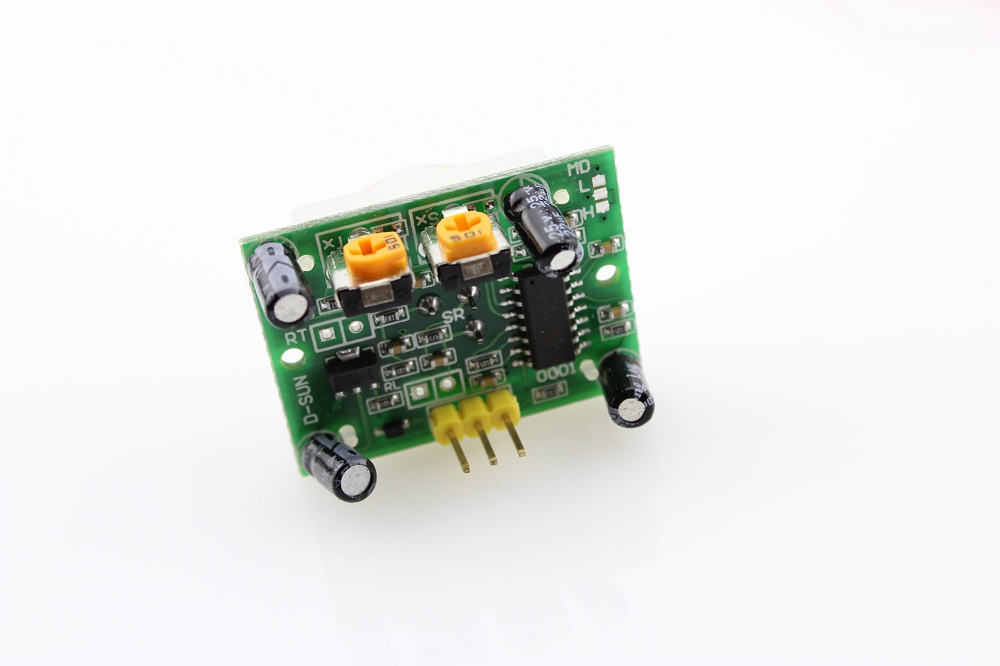

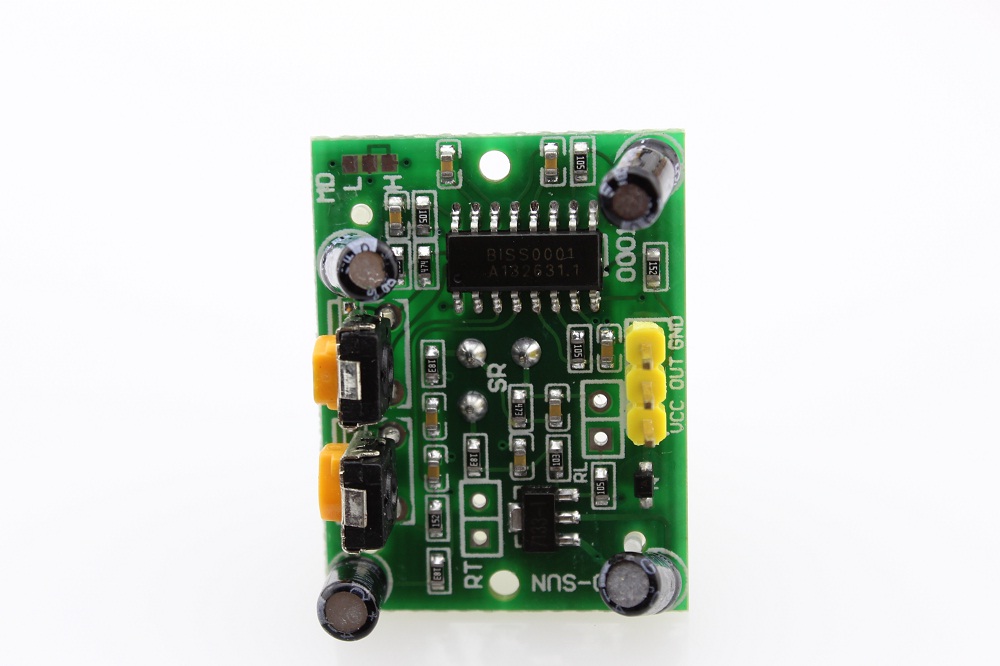

This is a highly integrated module popularly used for entry detection, it can simplely and easily to adopt in system. There are two adjustable potentiometer on the module, you can use them to change the trigger sensitivity and the duration of the trigger signal.
Specification
- Input Voltage: DC 4.5-20V
- Static current: 50uA
- Output signal: 3,3V or 5V (Output high when motion detected)
- Sentry Angle: 110 degree
- Sentry Distance: max 7 m
- Shunt for setting overide trigger: H - Yes, L - No
