L9110 Dual-Channel H-Bridge Motor Driver Module - 12V 800mA

L9110 Dual-Channel H-Bridge Motor Driver Module - 12V 800mA

Módulo driver de motores puente H de dos canales. Posee 2 drivers L9110S y provee 800mA de corriente continua.

COD: EAML9110DM

Peso: 0.007 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 4000.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

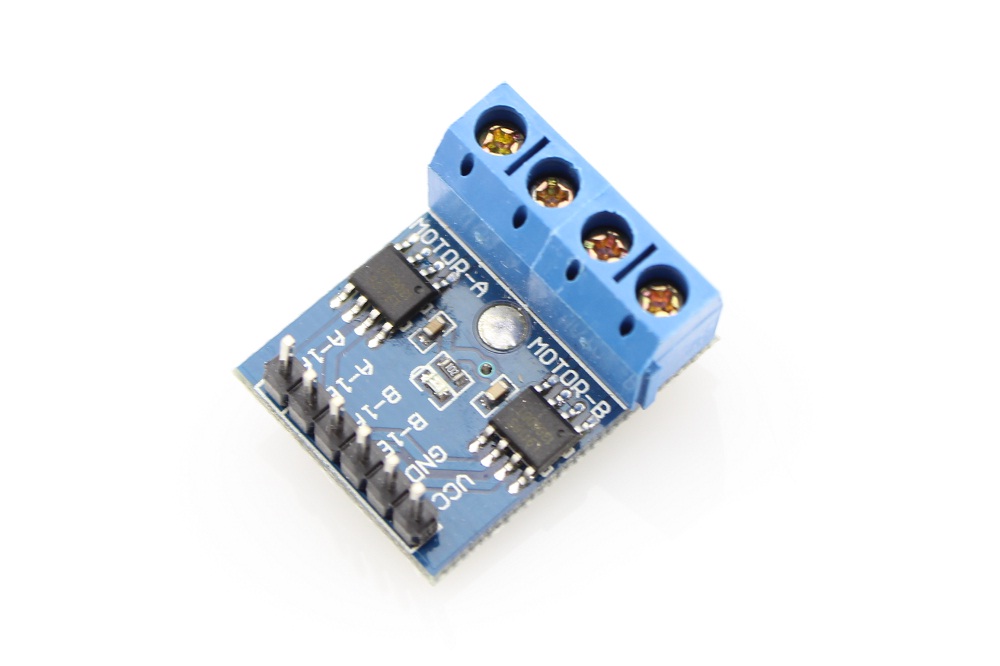

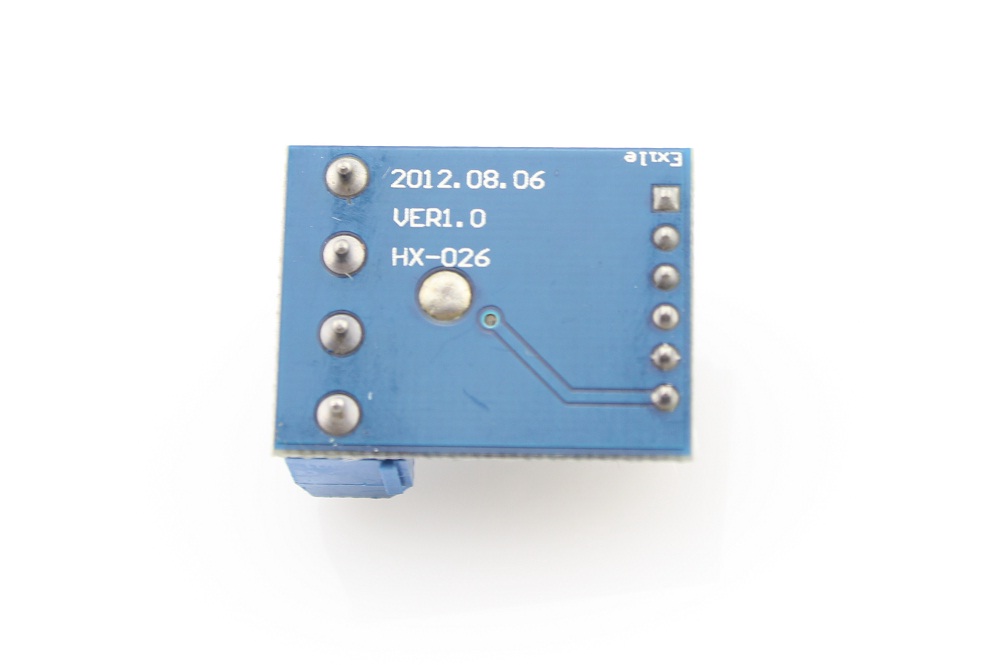

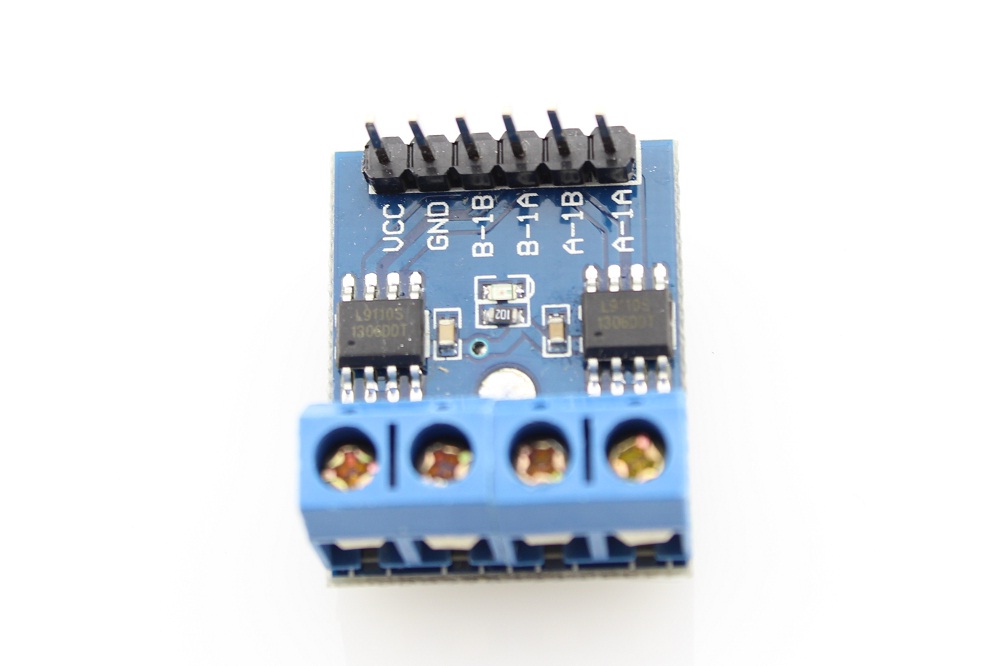

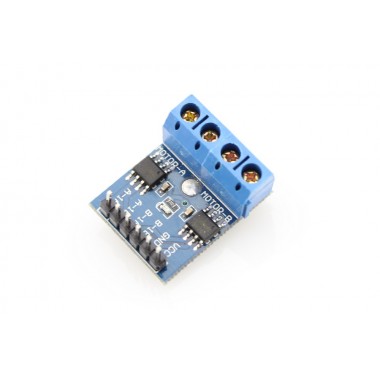

The L9110S Dual Channel Motor Driver Module is a compact board that can be used to drive very small robots. This tiny module has two independent L9110S motor driver chips which can each drive up 800mA of continuous current. The boards can be operated from 2.5V to 12V enabling this module to be used with both 3.3V and 5V microcontrollers. A set of male header pins is used to connect this module to your robot's microcontroller brain. The motors are attached via two sets of screw terminals. A PWM Pulse Width Modulation signal is used to control the speed of a motor and a digital output is used to change its direction. This module can also be used to drive a single four line two phase stepper motor.

Specification

  • Motor Voltage: 2.5 ~12V
  • Motor channels: 2
  • Max Continuous Current per Channel: 800mA
  • Size: 31mm x 22mm x 12mm
