MAX7219 8x8 Matrix Display Module - Red Dot

MAX7219 8x8 Matrix Display Module - Red Dot

Matriz de LEDs rojos de 8x8, basado en módulo MAX7219. EL brillo puede controlarse por software.

COD: EDLM72191R

Peso: 0.015 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 17786.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

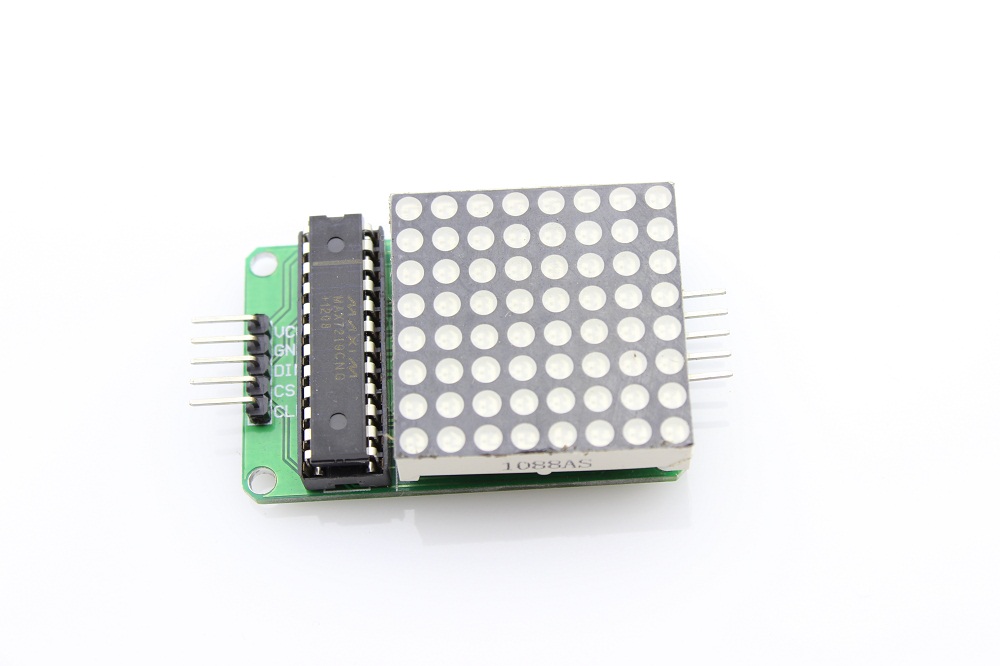

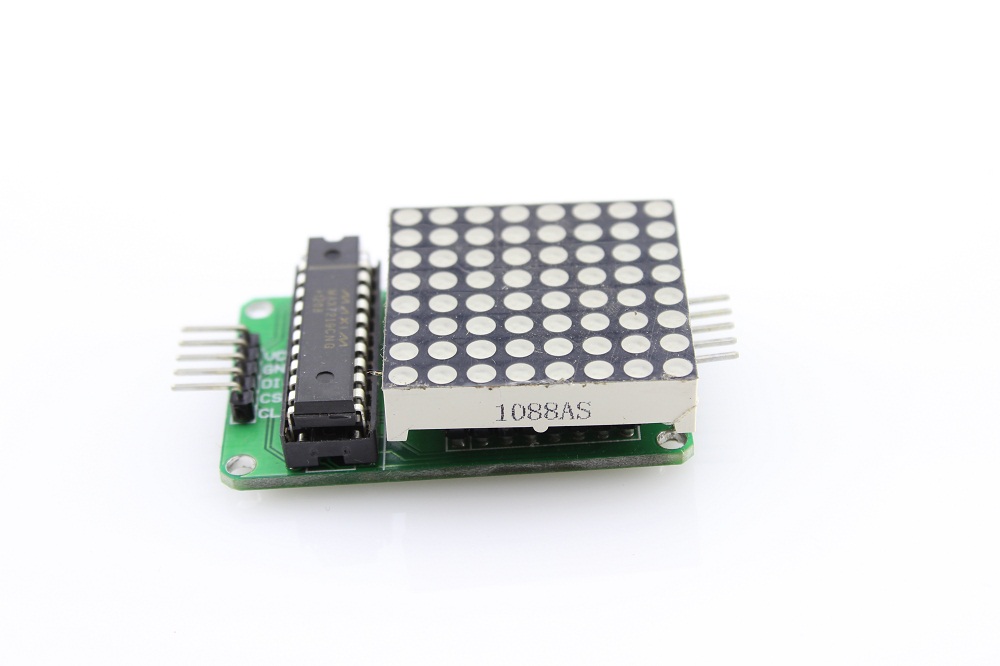

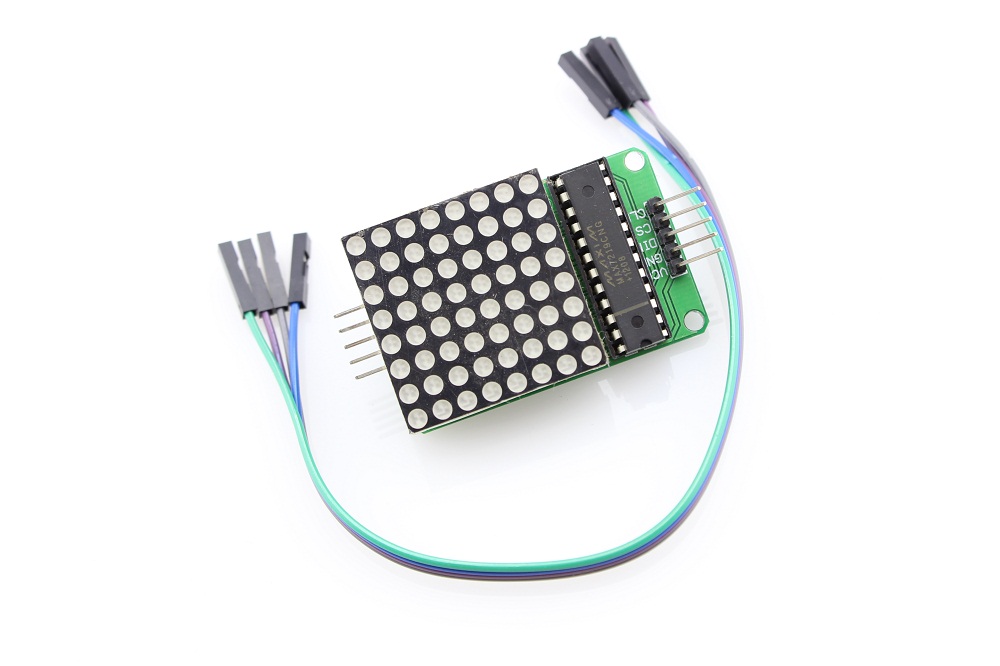

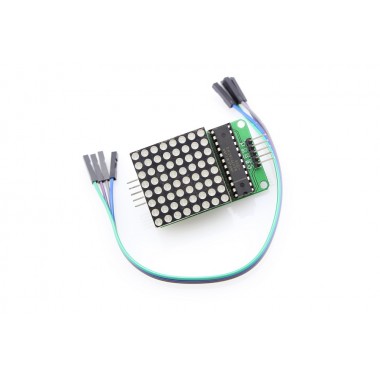

This product is a serially driven 8x8 LED Matrix which powered by MAX7219. The 8x8 LED Matrix is easy to use and compatible with Arduino, only needs three data lines and two power lines. It can be used in lots of place like various types of electronic display panels. You can make your applications more vivid because of the LED brightness adjustment can be implemented in software.



Specification

  • Operating Voltage: DC 4.7V~5.3V
  • Operating Current: 320mA
  • Max Operating Current: 2A
  • Operating Temperature: 0~50 Degree
