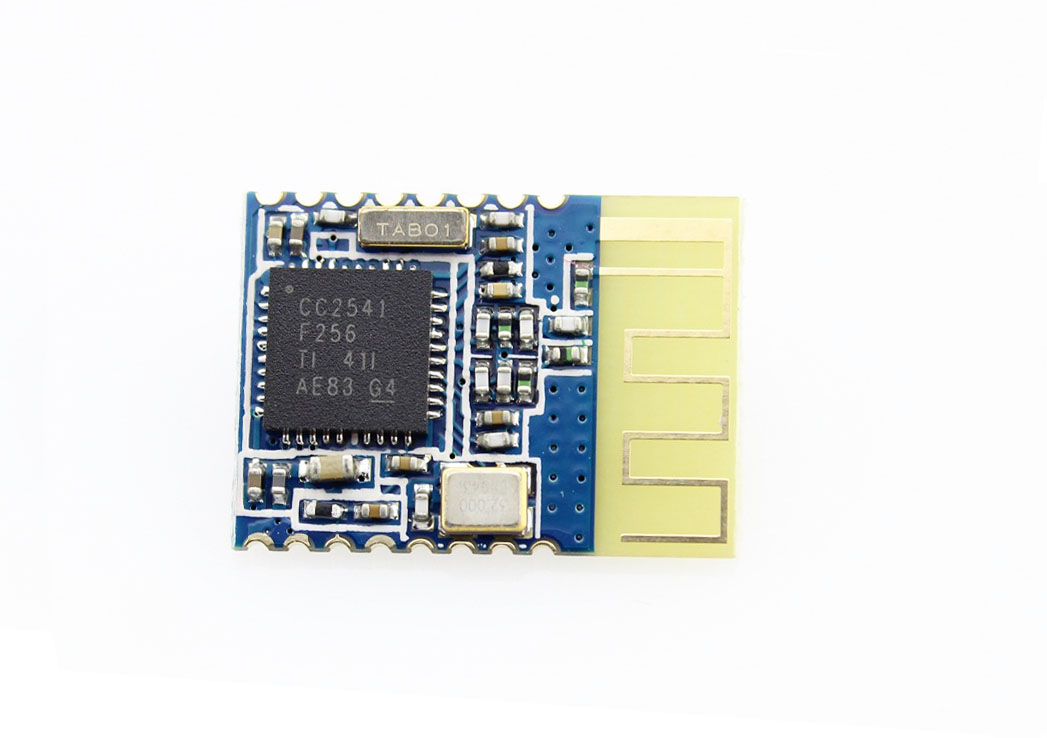

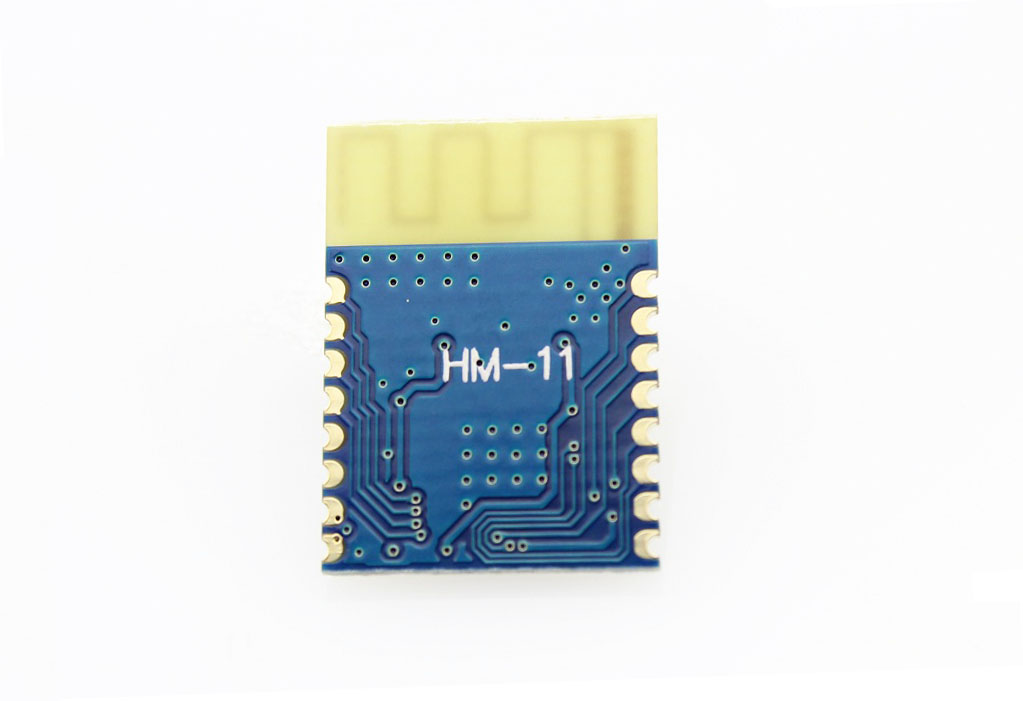

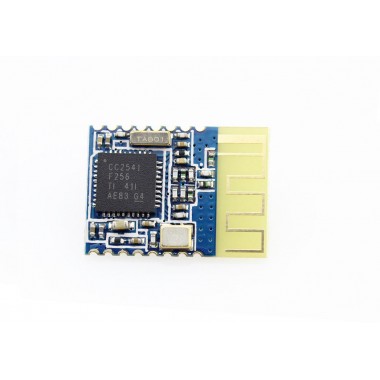

Bluetooth Low Energy Module HM11- CC2540
Módulo Bluetooth de bajo consumo basado en el microprocesador CC2540
COD: ECBLE2540HM
Peso: 0.020 Kg
Disponibilidad: En Stock
ARS 37765.00
El producto no está disponible para la venta en este momento
Características
This BLE4.0 module is based on the CC2540 microprocessor, it can be used to communicate with desktop computers, smartphones, table computers and even other embedded systems providing Bluetooth Smart aka Bluetooth Low Energy (BLE). It's highly customlized chip with AT comand supported. You can modify the role (master, slave mode) and the serial port baud rate, name of equipment, matching parameters such as passwords, use agile, even the transmission power bwtween - DBM, 23-6 DBM, 0 DBM, 6 DBM. Besides, there have been large quantity of Resource& Demos of development material& tools are provide to help IOS and Android developers to develop BLE4.0 related apps, it will greatly helps for your development.
Features
- Compatible XBee form factor
- Bluetooth Specification V4.0 aka BLE
- Serial port interface
- Open environment within 30 meters can realize communication between modules
- AT command supported as description
Specification
- Working frequency: 2.4 GHz ISM band
- Microprocessor: CC2540
- Modulation method: GFSK (Gaussian Frequency Shift Keying)
- PCB size: 24.5mmx30.5mmx0.8mm
- Power supply: 3.3V
- Communication Protocol: Uart(TTL)
- power supply: + 3.3 VDC 50 mA
- working temperature: - 5 ~ + 65 Centigrade
basic_at_commands_of_hm-1011.pdf (28 Kb)
hm11_arduino_demo.zip (1 Kb)
