Digital RGB LED Flexi-Strip 60 LED - 1 Meter
Tira de 60 leds RGB flexible de 1 metro de longitud, con control individual de cada led, por medio de un bus de datos.
COD: SE800021001
Peso: 0.200 Kg
Disponibilidad: Sin Stock
ARS 42495.00
El producto no está disponible para la venta en este momento
Características

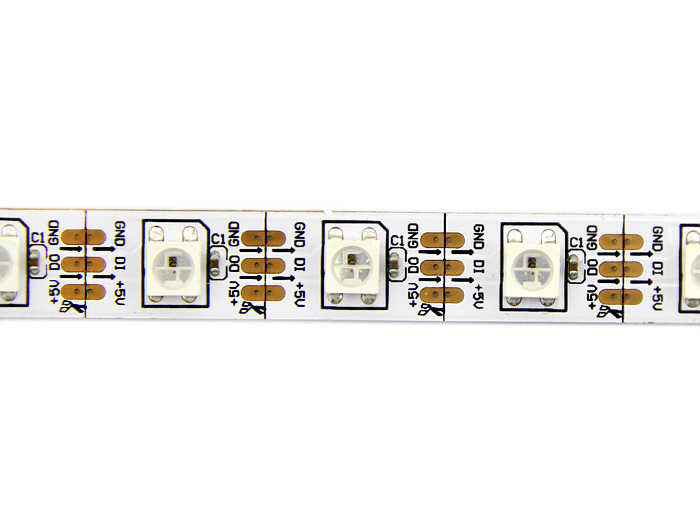

Digital RGB LED Flexi-Strip is an intelligent light source consists of WS2812B RGB LED with Integrated Driver Chip. The control circuit and RGB chip are integrated in a package of 5050 components.
This LED flexible strip is a full-color that external control for each lamp beads. It with high brightness, can achieve effects of full color running water, chasing and scan.
The RGB LED chips with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
Features
- Integrating control circuit and RGB chip
- Built-in signal reshaping circuit
- Built-in electric rest circuit and power lost reset circuit
- 256 brightness and 16777216 color display
- Cascading port transmission signal
- Can custom LED number, cutting what number you want.
Specifications
- Working voltage: DC 5V
- Max. power rate: 0.3W/LED
- Working temperature: -40°~60°
- LED number: 60pcs/meter
- Viewing angle: ≥140
- Lifespan: MTBF≥50000h
Galería de Imágenes
Archivos
WS2812B Datasheet (260 Kb)

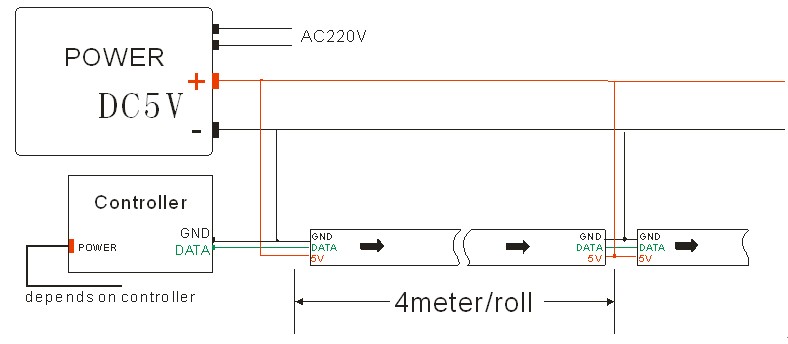

Simple Circuit (33 Kb)

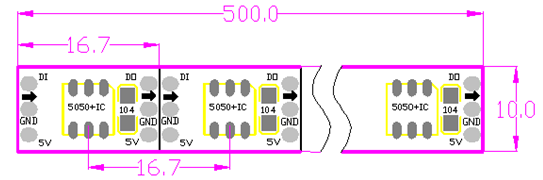

Diagram for Flex-strip’s product size (25 Kb)
Example Code (29 Kb)Comentarios
Escribir ComentarioOpenHacks (26/10/2015 - 15:20)
Hola Rodrigo, podes cortar la tira con la cantidad de Leds que precises. Saludos!
Rodrigo (23/10/2015 - 11:27)
Una consulta . Se pueden cortar a gusto la cantidad le led ? Saludos
