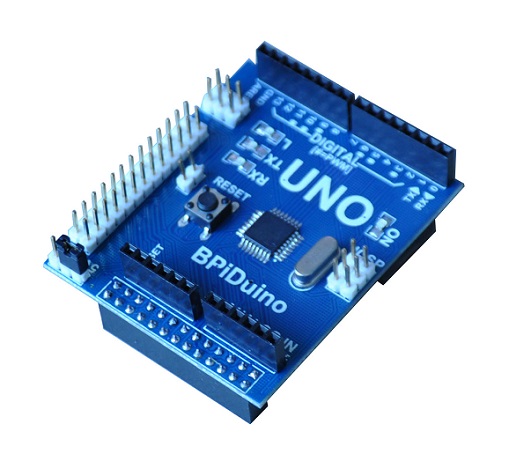

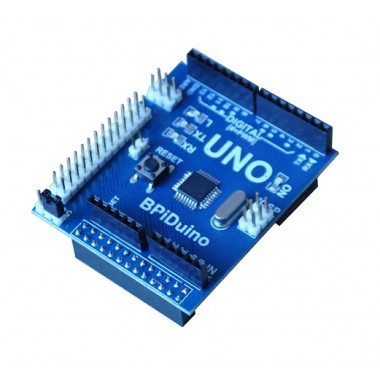

BPi UNO Board

BPi UNO Board

Módulo de ampliación que permite brindar a Banana Pi de compatibilidad de bajo nivel con Arduino UNO. Está basado en ATmega328.

COD: BA000005

Peso: 0.100 Kg

Disponibilidad: En Stock

Su correo electrónico:

ARS 48361.00

Cantidad:

El producto no está disponible para la venta en este momento

Características



Product Overview

The module makes Banana Pi compatible with Arduino Uno and many Arduino Shields. There is an ATmega328 chip on the board so the module can compatible Arduino Uno code and peripheral. This board is a combination of high operation performance of the banana pie and Arduino flexible control performance, the combination of peripheral greatly expand the banana pie access ability and the abundance of accessories.

Product Features

 ATmega328 chip on module

 Compatible with Arduino Uno

 Switch 5V or 3.3V GPIO

 Compatible with Processing code

 Expand SPI of Banana Pi

Port

 Banana Pi connection port

 Banana Pi cascade port

 Arduino Uno GPIO

 Electric level switch jumper

 SPI

 ICSP port

Product Parameters

 Working voltage: 3.3V-4.5V

 GPIO voltage: 3.3V / 5.5

 8 channel 10bit high resolution ADC  Power-down Mode: 0.1μA

 32K ROM

 2K RAM

 −40°C to +85°C operation



Comentarios

Escribir Comentario

OpenHacks (15/06/2015 - 15:38)

Hola Agustín, supuestamente es compatible con Raspberry Pi -aunque aquí no lo hemos comprobado- y no sabemos si es compatible con RPi2. Aqúi hay unos links donde se discute esto: http://www.alibaba.com/product-detail/BPI-UNO-BOARD-for-Banana-Pi_60084417365.html https://www.raspberrypi.org/forums/viewtopic.php?f=62&t=92137

Agustin Dos Santos (14/06/2015 - 21:18)

Hola, este shield es compatible con el raspberry pi2 ?
