Netduino 2

Netduino 2

Board basada en plataforma .NET Micro Framework con STmicro Cortex M3 de 32 bits

COD: NET0006

Peso: 0.100 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 90515.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

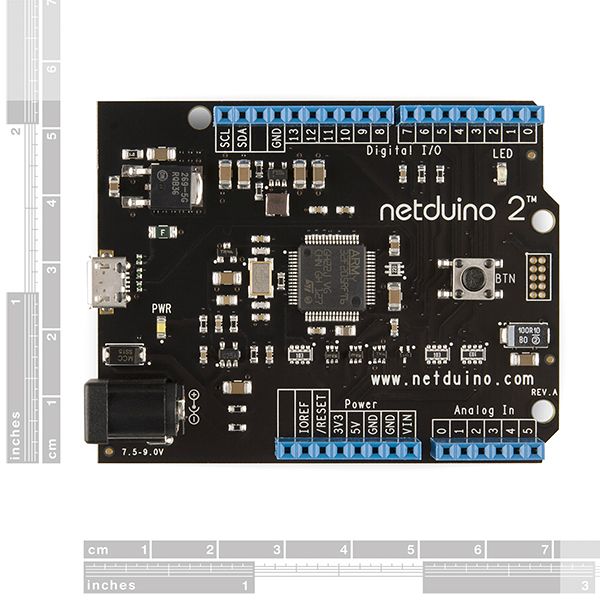

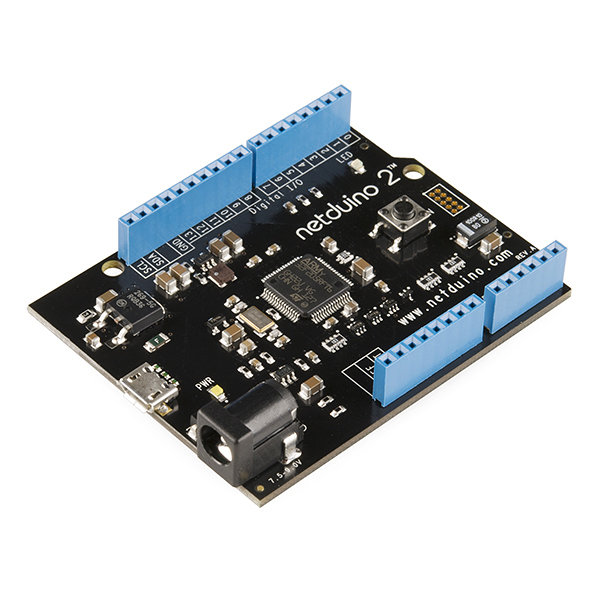

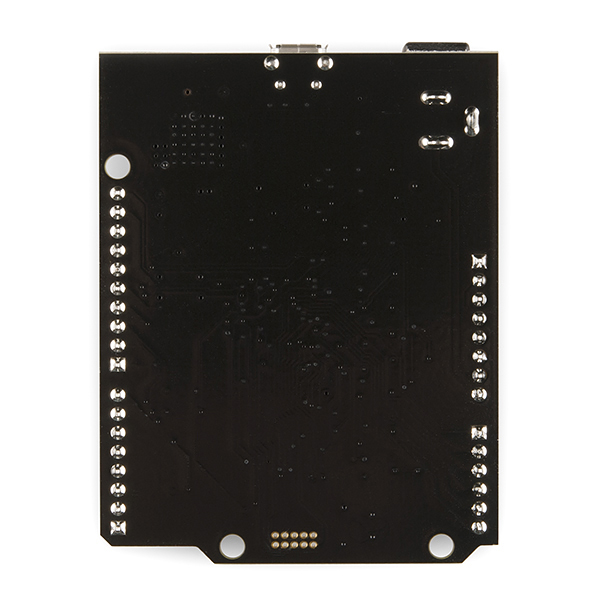

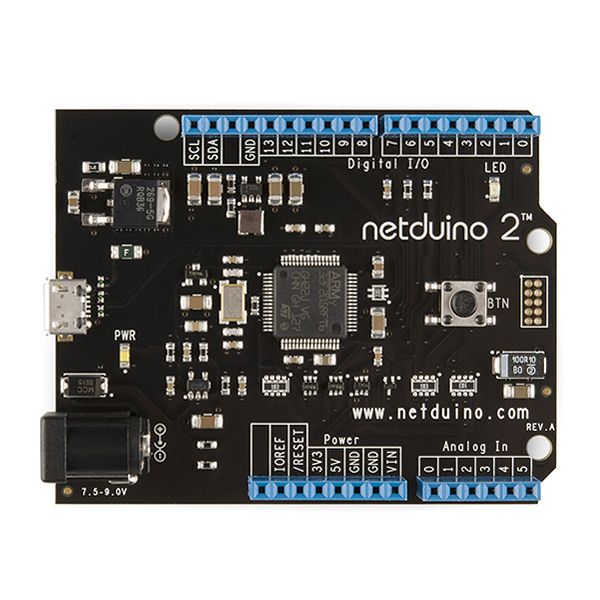

Description: Are you a fan of the Netduino? Are you a .NET developer looking for a capable 32-bit development board? Well we've got good news! Secret Labs have updated their classic Netduino to create: Netduino 2!

Netduino 2 is still the same Arduino shield compatible board you know and love, except faster with more code space. Powered by an STmicro Cortex-M3 microcontroller running at 120MHz, the Netduino 2 packs 192KB of code space and 60KB of RAM. With built-in hardware peripherals like UART, PWM, I2C, 12-bit ADC and DAC, the Netduino 2 is ready to interface with whatever you throw at it. That includes Arduino R3-style shields, since Netduino 2 adds two GPIO over its predecessor.

Features:

  • STMicro 32-bit microcontroller
  • Speed: 120MHz, Cortex-M3
  • Code Storage: 192 KB
  • RAM: 60 KB
  • Power LED and User LED
  • Button Acts as reset by default but can be used as input device
  • Vin: 7.5 - 9.0 VDC or USB powered
  • Vout: 5 VDC and 3.3 VDC regulated
  • Max Current: 25 mA per pin
  • GPIO are 3.3V but 5V tolerant

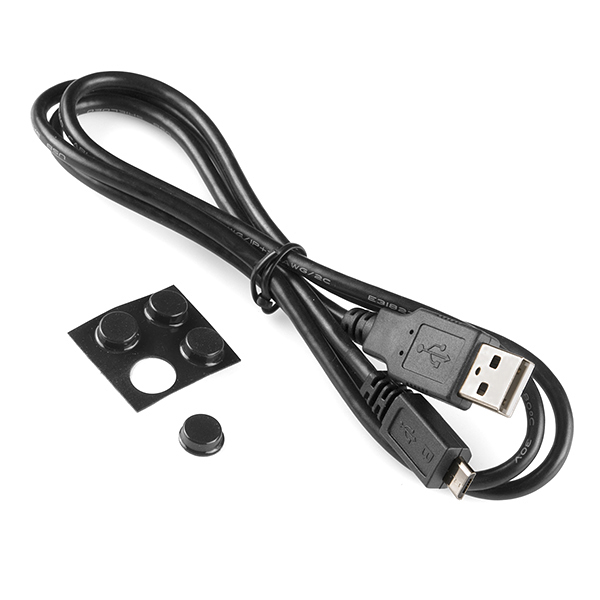

Includes:

  • Netduino 2
  • 4 x Sticky Feet
  • 3ft Micro Usb Cable

Documents & Info:
