XBee Pro 63mW PCB Antenna - Series 2B (ZigBee Mesh)

XBee Pro 63mW PCB Antenna - Series 2B (ZigBee Mesh)

Mósulo Digi XBee de 63 mw Serie 2B con antena integrada en la placa para redes ZigBee Mesh

COD: SFWRL10418

Peso: 0.010 Kg

Disponibilidad: Sin Stock

Su correo electrónico:

ARS 93267.00

Cantidad:

El producto no está disponible para la venta en este momento

Características

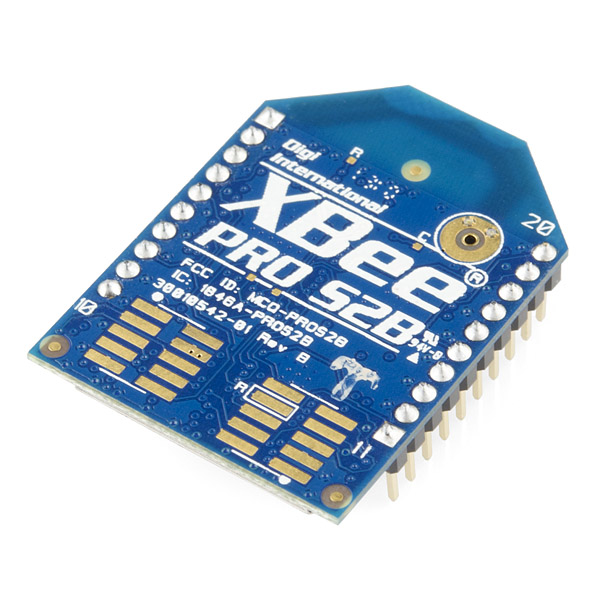

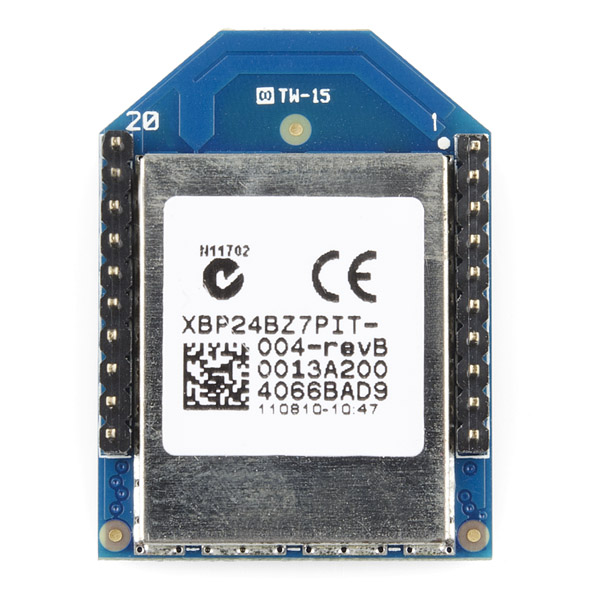

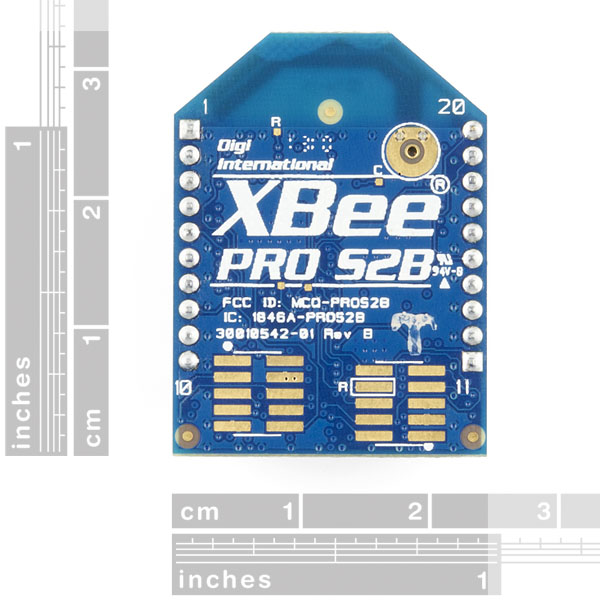

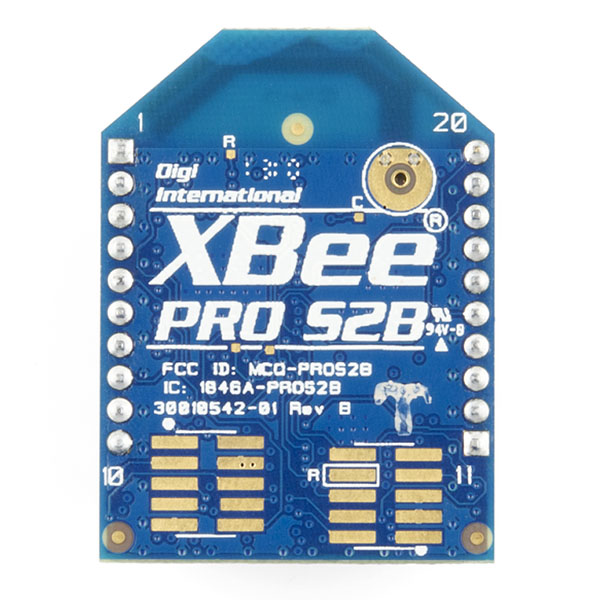

Description: This is the XBee XBP24-BZ7PIT-004 module from Digi. The new Series 2B improves upon the power output and data protocol of the Pro Series2. Series 2B modules allow you to create complex mesh networks based on the XBee ZB ZigBee mesh firmware. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.

Series 2B modules use a different hardware configuration from the earlier models and while they will communicate with Series 2 XBee modules, they are not compatible with the outdated Series 2.5 Modules.

Note: If you are looking for a simple point-to-point configuration, you might want to try the Series 1 instead. The Series 2 requires considerable setup and configuration.

Note: Series 1 and Series 2B XBee modules have the same pin-out. However, Series 1 modules cannot communicate with Series 2B modules.

Features:

  • 3.3V @ 295mA
  • 250kbps Max data rate
  • 63mW output (+17dBm)
  • 1 mile (1600m) range
  • Built-in antenna
  • Fully FCC certified
  • 6 10-bit ADC input pins
  • 8 digital IO pins
  • 128-bit encryption
  • Local or over-air configuration
  • AT or API command set

More information:
